Pantech CDM8975 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

1 - 2 Minuten

Einleitung

You will need a Phillips screwdriver to remove the screws from the back of the phone, and a spudger to pry the plastic pieces from each other.

  1. pr2jxpPhtDDPSUKZ

    • Remove the battery.

    • Remove four Phillips screws.

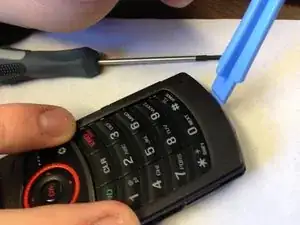

  2. iHSH1o1pdXEGTGlu

    • Pry up the plastic layer with a plastic opening tool.

    • NOTE: Be careful that you do not separate the two plastic parts completely they are fragile and may break if pulled too hard.

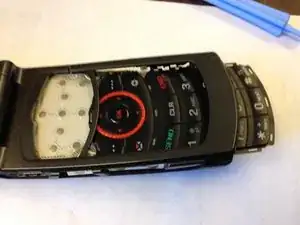

  3. 2vl4lsKUrugdNLXg

    • Slide out the keyboard carefully in between the two layers.

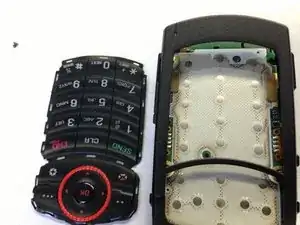

  4. 6Nu24YEyIj1pvvMo

    • Insert the new keyboard in between the two layers carefully.

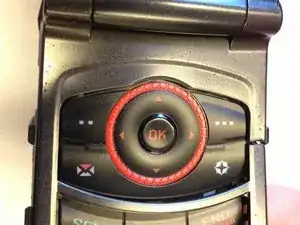

  5. 4w4iOxXsyd5uKGDS

    • Check if the edges are perfectly aligned between the two plastic layers after you insert the keyboard.

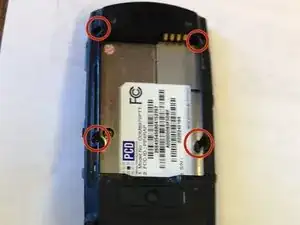

  6. vvEebPgQeAD3DoVv

    • Press the two plastic layers back together.

    • Reinsert the four screws and place the battery and cover back.

Abschluss

You now have a new keyboard.
