Pantech Matrix Motherboard Replacement

Geschrieben von: Zeel Patel
  • Kommentare: 0
Pantech Matrix Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

15 - 20 Minuten

Einleitung

The motherboard of the Pantech Matrix C740 functions as the control center for phone functioning; however, faulty functioning of the motherboard may cause the device to either not function properly or not function at all. Therefore, this guide serves as an aid in the replacement of the motherboard for the Pantech Matrix C740.

  1. M2UAxAuU2eZq4efC

    • Place phone with screen side facing toward you.

  2. CoDANMFIovVnEpEs

    • Flip phone over so screen side is now facing down.

  3. 3aNJbtQpaRqjsZGD
    3aNJbtQpaRqjsZGD
    HuGAJDgDYHwQWYry

    • Gently slide the backside phone cover off exposing the battery underneath.

  4. lUXoBUdlyyIQ6rGp

    • Carefully lift the battery up from where the spudger is pointed.

  5. rEJ2lb2yjd6BXmLB

    • Remove the battery from its dock.

  6. nlRMLDaW3cMyQy6e
    nlRMLDaW3cMyQy6e
    MYEIJKAXo6MrRrcK
    semeoMKVnKYFokxT

    • Slide the SIM Card out of its dock.

  7. enUpVZa5De2nSAPu
    enUpVZa5De2nSAPu
    adlNkujDCCIC1ALe

    • Use a Phillips screwdriver to remove the four 2mm Phillips #000 screws from each corner of the device.

  8. FJ44tpjZAgjIIjVS
    FJ44tpjZAgjIIjVS
    WDEHk2Gka5TnXFWg

    • Rotate the phone so the base is facing you.

    • Use spudger to separate phone casing and inside as shown.

    • Remove the casing carefully and set aside.

  9. LVBl6kPATj1oScni
    LVBl6kPATj1oScni
    blPQEUKSGDJ5ZqVT

    • Place phone with exposed motherboard facing you.

    • Use a Phillips screwdriver to remove the five 2mm Phillips #000 screws holding the camera in place.

  10. DXGiTFpBT1lnmv32

    • Carefully lift up the motherboard to expose the back of the keypad.

  11. mnxtgDNVtRWb4RVB
    mnxtgDNVtRWb4RVB
    ArU5UCh3HwERWKPD

    • Use spudger to gently pry the keypad away from the rest of the phone.

  12. GbsilNlkEH2E53ni
    GbsilNlkEH2E53ni
    nwFSNotDc5XHgiSB
    PCH2AsdfXuwVDncu

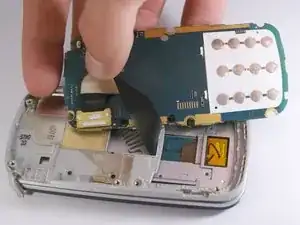

    • Grip the motherboard and gently pull to separate it from the rest of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
