Pantech Matrix Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

The power button of Pantech Matrix C740 functions as the mechanism for either turning the device on or off or resetting the device; however, faulty functioning of the power button may not allow any of the these functions to occur. Therefore, this guide serves as an aid in the replacement of the power button for the Pantech Matrix C740.

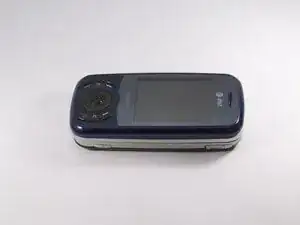

  1. M2UAxAuU2eZq4efC

    • Place phone with screen side facing toward you.

  2. CoDANMFIovVnEpEs

    • Flip phone over so screen side is now facing down.

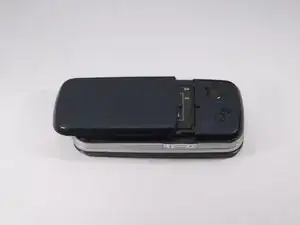

  3. 3aNJbtQpaRqjsZGD
    3aNJbtQpaRqjsZGD

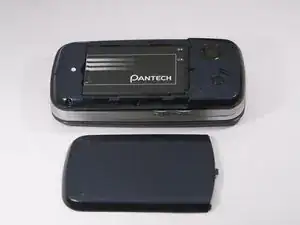

    HuGAJDgDYHwQWYry

    • Gently slide the backside phone cover off exposing the battery underneath.

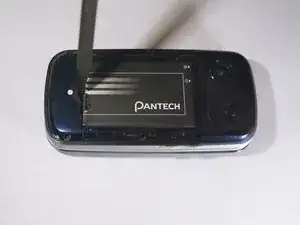

  4. lUXoBUdlyyIQ6rGp

    • Carefully lift the battery up from where the spudger is pointed.

  5. rEJ2lb2yjd6BXmLB

    • Remove the battery from its dock.

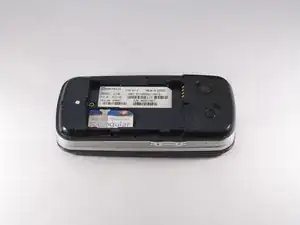

  6. nlRMLDaW3cMyQy6e
    nlRMLDaW3cMyQy6e

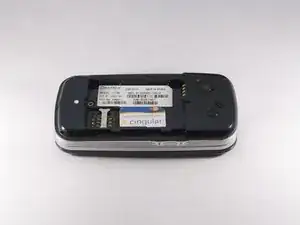

    MYEIJKAXo6MrRrcK

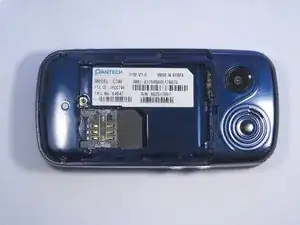

    semeoMKVnKYFokxT

    • Slide the SIM Card out of its dock.

  7. VIVyaRhqV3SdIMNF
    VIVyaRhqV3SdIMNF
    npRVwGjOtodoiTV2

    • Use a Phillips screwdriver to remove the four 2mm Phillips #000 screws from each corner of the device.

  8. BpSlUKwATVtRWaZ2
    BpSlUKwATVtRWaZ2
    iQWFkCFDikOwZDQ6

    • Rotate the phone so the base is facing you.

    • Use spudger to separate phone casing and inside as shown.

    • Remove the casing carefully and set aside.

  9. YsrgJ3EfqYtyfX3h
    YsrgJ3EfqYtyfX3h
    OTrGxEDeCXhtgFeL

    • Place phone with exposed motherboard facing you.

    • Use a PH000 driver to remove the five 2 mm screws holding the camera in place.

  10. ajOBpSepPmISeGqJ

    • Carefully lift up to motherboard to expose the power button.

  11. OS6NaSELYAWjdUgU
    OS6NaSELYAWjdUgU
    TXw3HWriGV4SBcjc

    • Locate the power button.

    • Grasp the power button with metal tweezers and pull gently to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
