Pantech Matrix Speaker Replacement

Geschrieben von: Zeel Patel
  • Kommentare: 0
Pantech Matrix Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

The speaker of Pantech Matrix C740 functions as the mechanism to allow for hearing whether from calls or videos watched using the Internet; however, faulty functioning of the speaker may cause the device to either not allow sound to be heard at all or not clearly. Therefore, this guide serves as an aid in the replacement of the speaker for the Pantech Matrix C740.

  1. M2UAxAuU2eZq4efC

    • Place phone with screen side facing toward you.

  2. CoDANMFIovVnEpEs

    • Flip phone over so screen side is now facing down.

  3. 3aNJbtQpaRqjsZGD
    3aNJbtQpaRqjsZGD
    HuGAJDgDYHwQWYry

    • Gently slide the backside phone cover off exposing the battery underneath.

  4. lUXoBUdlyyIQ6rGp

    • Carefully lift the battery up from where the spudger is pointed.

  5. rEJ2lb2yjd6BXmLB

    • Remove the battery from its dock.

  6. nlRMLDaW3cMyQy6e
    nlRMLDaW3cMyQy6e
    MYEIJKAXo6MrRrcK
    semeoMKVnKYFokxT

    • Slide the SIM Card out of its dock.

  7. AJplUDa6uv2KHU3T
    AJplUDa6uv2KHU3T
    EGRyQn1DX6d6aZpt

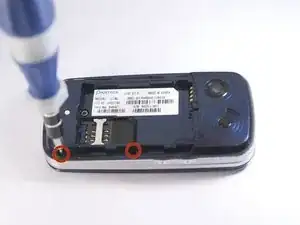

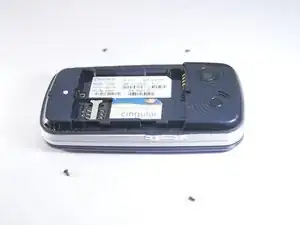

    • Use a Phillips screwdriver to remove the four 2mm Phillips #000 screws from each corner of the device.

  8. uiROViuqGxZ5olIV
    uiROViuqGxZ5olIV
    CYDousNu1kbBuCdh
    xQFajEH2QIQ6Cvxo

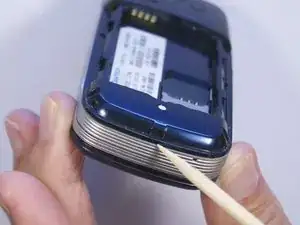

    • Rotate the phone so the base is facing you.

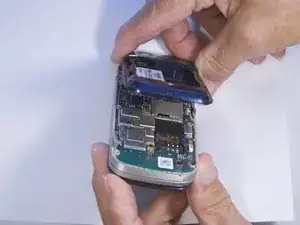

    • Use spudger to separate phone casing and inside as shown.

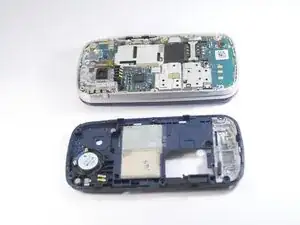

    • Remove the casing carefully and set aside the rest of the phone.

  9. 1skVaLfqwOp1ZG46
    1skVaLfqwOp1ZG46
    4TqG4VHUHeCtYaHd

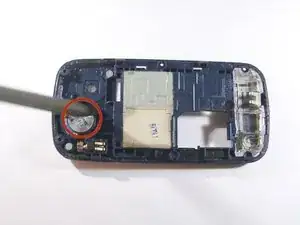

    • Place the spudger in the notch on the side of the speaker as shown.

    • Use the spudger to gently pry the speaker loose from its dock.

    • Remove the speaker fully from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
