Parrot AR.Drone 2.0 Mainboard and Navigation Board Replacement

Geschrieben von: David Hoyt
  • Kommentare: 4
Parrot AR.Drone 2.0 Mainboard and Navigation Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 Minuten

Einleitung

Use this guide to replace the mainboard and navigation board in your Parrot AR.Drone 2.0.

AR.Drone 2.0 spare parts and mounting tools are available from several Parrot retailers.

  1. DpnxJDTDQlElyZqT

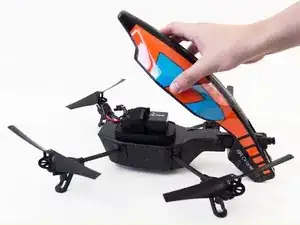

    • Remove the foam body.

  2. iwiiWrSAkdHS1S3L
    iwiiWrSAkdHS1S3L
    LMw1dINprBKl3oMD

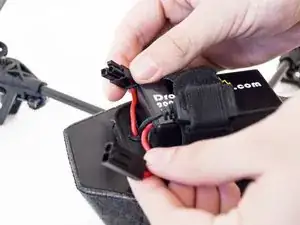

    • Disconnect the battery by pulling the two red wires apart.

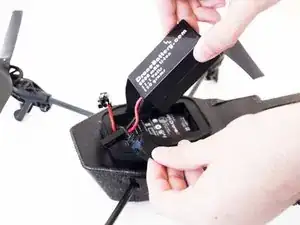

    • Remove the battery by releasing the battery retaining straps.

  3. dr6nGTEROgGSG2tN
    dr6nGTEROgGSG2tN
    G6HEupACNcFELYDT

    • Turn the drone upside down.

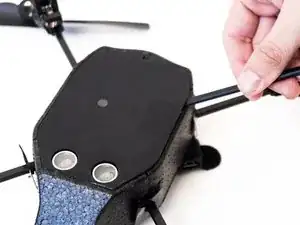

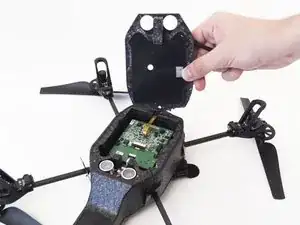

    • The cover is held on by plastic tape. Peel off the tape and use a spudger to remove the back cover.

  4. XXEIiMdWHFhhMb5U
    XXEIiMdWHFhhMb5U
    6Dn5UXlH43KYTBpc
    yHsjeKuRWsbntyRj

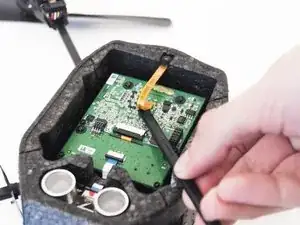

    • Using a spudger, separate the connector for the downward camera.

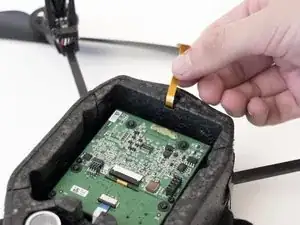

    • Remove the camera from the body by pulling it off the foam body.

  5. 2Pq4gjPoRTvIdLgg
    2Pq4gjPoRTvIdLgg
    4nEdJeSnVIfR4ybK

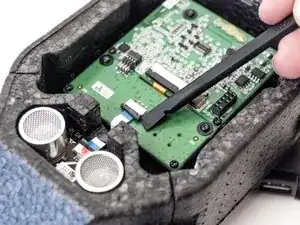

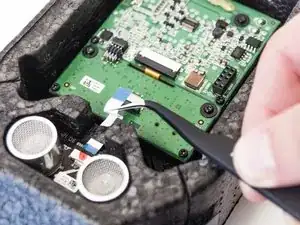

    • Use a spudger to release the black retaining clip. Then disconnect the connector to the sensors.

    • Use tweezers to carefully remove the ribbon from the connector.

    How can I get that connector, the one it’s disconnected?

    gui txr -

  6. ciRCStIjEIeOLLEw

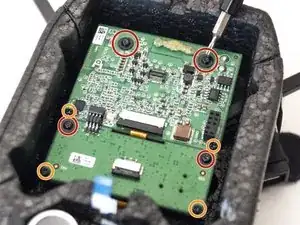

    • Remove the four 8mm torx screws with a T6 bit.

    • Remove the four 8mm philips head screws with a PH00 bit.

  7. AAPgcRIvQNAdBZQa
    AAPgcRIvQNAdBZQa
    NAITADZEntVyGXQO

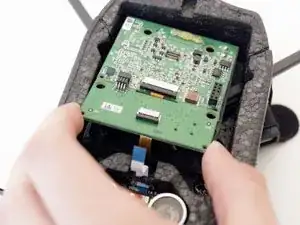

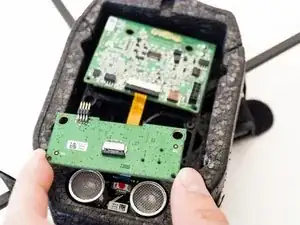

    • Carefully pull the secondary board from the mainboard.

  8. wJ2ghsTWyiDKihKR
    wJ2ghsTWyiDKihKR
    dBGcOCDFXwDmYOST
    XyMAOPToRkMrUm3N

    • Turn the drone right side up

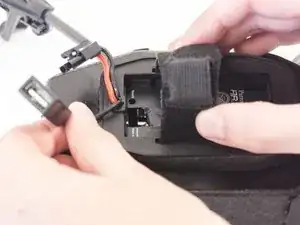

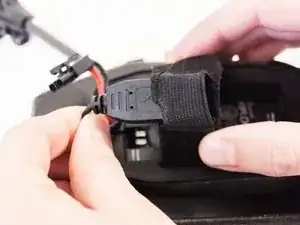

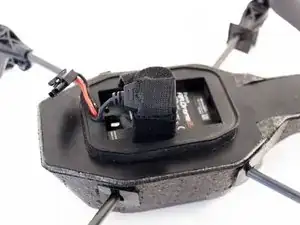

    • Remove the USB connector from the battery retaining straps.

  9. XH4oHykiiCWghhSn

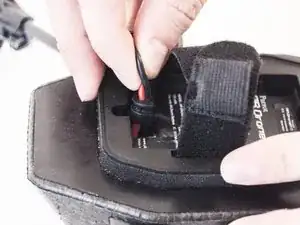

    • Release the rubber clip holding the USB and battery power cable to the body.

  10. 3ZsMyygPQ1yvUfK4
    3ZsMyygPQ1yvUfK4
    QF1EVVKwhYgCKqcx

    • Avoid using sharp tools near the battery.

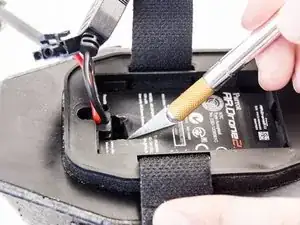

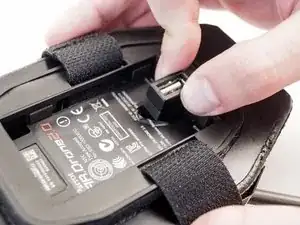

    • Push the USB and power cable through the battery panel.

  11. mvrptx4HUWgXJ5OM
    mvrptx4HUWgXJ5OM
    vXRsvBuBNhef6lRN

    • Turn the drone upside down again.

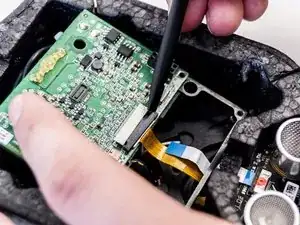

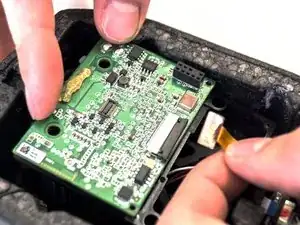

    • Use a spudger to release the connector and carefully remove the ribbon.

  12. hPPImSCrbtCKLAGu
    hPPImSCrbtCKLAGu
    JAFH55kLYGZWlvHq

    • Lift the mainboard up so that you can access the back.

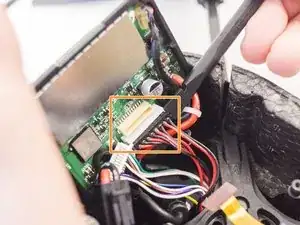

    • Disconnect the first connector with the white wires using a nylon spudger.

    • Disconnect the second connector with the red and black wires using a spudger.

  13. UcPwA1lBmesouuxN

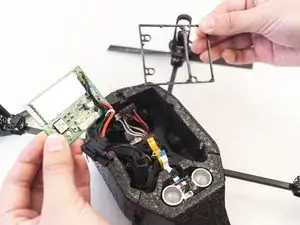

    • The mainboard is now fully detached and can be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
