Parrot Bebop Drone GPS Board Replacement

Geschrieben von: Austin
  • Kommentare: 1
Parrot Bebop Drone GPS Board Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

3 Minuten

Einleitung

This guide will show the steps needed to remove the GPS Module. In order to remove the GPS Module, the nose will have to be removed first. Removing the GPS Module will require disconnecting the wire connections on it.

  1. DOofjURaYmfT26bY
    DOofjURaYmfT26bY
    kXFKVOH1oyhKOoMx

    • Begin by removing the velcro strap around the battery.

  2. Y6vmPxUMoOgwGFJQ
    Y6vmPxUMoOgwGFJQ
    rRlLVJNwA3f2Z2DR

    • While holding onto the nose, gently pull the battery away from the nose.

  3. QENakdYVsCGwpWGr
    QENakdYVsCGwpWGr
    Uk4uRtQBdVSlxQha
    Lpercpp5S2XNpqJh

    • Once the battery is separated from the nose, push down on the connector and pull the battery away from the connector.

  4. QFEuRutUOY63MSKY
    QFEuRutUOY63MSKY
    PyIR1yFOWNSmYdUX

    • Remove the two 7mm T5 torx screws using a screwdriver. There is one located on each side.

  5. s3TUhXqNANdJHMJC

    • Take the metal spudger, to remove the double stick tape from the foam.

  6. xIYQthEoAWZMNxJt

    • Remove the styrofoam nose from over the drone's camera by sliding it towards the front of the drone at an angle.

  7. lsnaVjFxQFmGZyc2

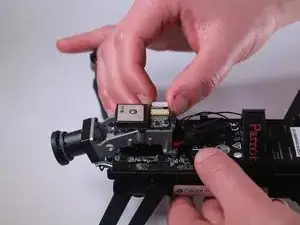

    • Remove the cable from the top of the GPS module.

  8. nMELhCkbo2UYrIYW
    nMELhCkbo2UYrIYW
    DqUGW2h5hJ6eJysA

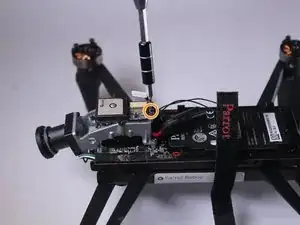

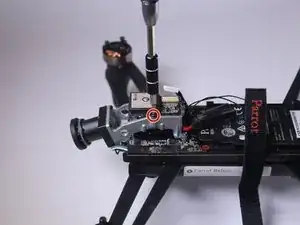

    • Remove the two 6mm T5 torx screws holding the GPS module. There is one screw on each side.

    • Remove the 4mm T5 Screw holding the GPS Module.

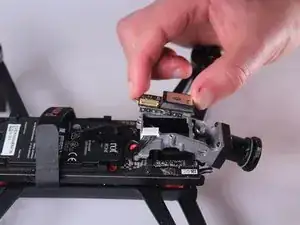

  9. w6AySJiyu1TtfNaD

    • Remove the GPS board by lifting it off of the metal frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
