Parrot FLYPAD Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how to replace buttons on the front of a Parrot Flypad if they have stopped working. Follow the instructions carefully to successfully replace the front buttons.

  1. XxBLKwMYnFUIDGHX
    XxBLKwMYnFUIDGHX
    s2TSP5AuOQthMPDD

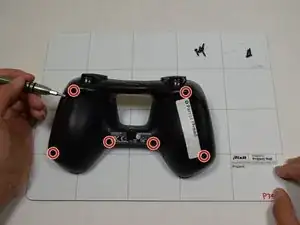

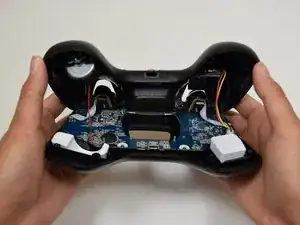

    • Position the controller so the back is facing up.

    • Use a T6 screwdriver to remove the six screws on the back of the controller: four 0.9 mm screws and two 0.1 mm screws.

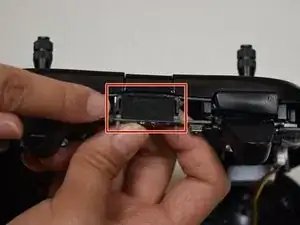

  2. gWeuFuUDVgap5GQD
    gWeuFuUDVgap5GQD
    OpEiMbE2R4UNrCxe

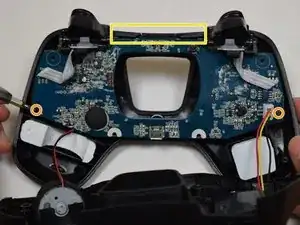

    • Remove the foam adhesive that connects the front plate to the motherboard

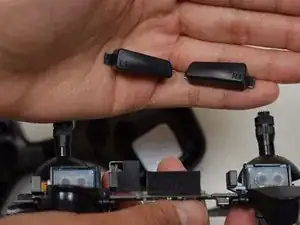

    • The buttons (L1,R1) may fall out. Set aside to replace during reassembly.

    • Use a Phillips #0 screwdriver to remove the two 0.7 mm screws.

    • Remove the motherboard from the front plate.

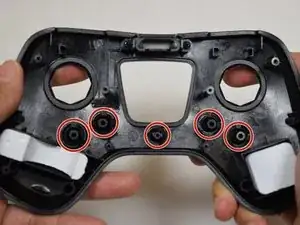

  3. TVDFVmFmqVfNycP6
    TVDFVmFmqVfNycP6
    SrCIL63kEkMTqZDS
    xq1KL5t2mxBS5AZK

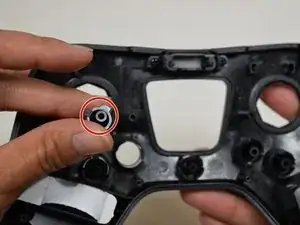

    • Remove the buttons from the front plate of the fly pad and replace as needed.

    • Hold the front plate of the fly pad facing downwards to prevent buttons from falling out.

    • Make sure the text on buttons L1 and R1 correctly line up with L2 and R2 when reassembling the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
