Parrot Hydrofoil Orak Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 - 3 Minuten

Einleitung

This guide will explain how to easily replace a dead or dying battery on the Parrot Hydrofoil Orak. A plastic opening tool will be useful, as part of the removal may hurt if you use your fingernail.

  1. QEZQY2RYCcIQG5Kj

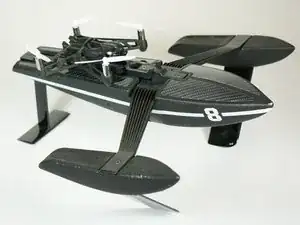

    • Orient the device so that the front of the boat chasis is facing to your right.

  2. Xcq6fpwsTVeUvXuS
    Xcq6fpwsTVeUvXuS
    bCdi6YVOnFB1OhDl
    rffMUpSJn3uAPjNO

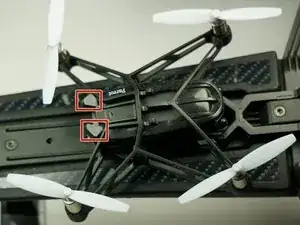

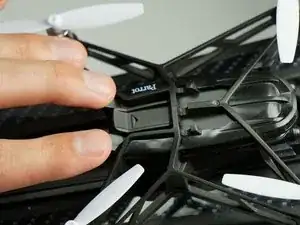

    • Use your pointer finger on one tab, your middle finger on the other, and your thumb on the bottom to pry the tabs away and lift the drone out of the holder.

  3. AA1RKZlIscIEfXww
    AA1RKZlIscIEfXww
    V4wsCWlkGNURajIf

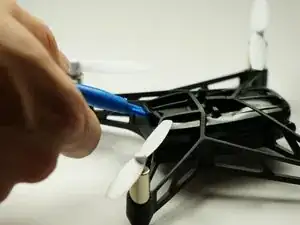

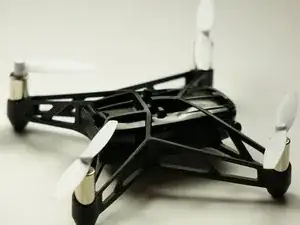

    • Insert your plastic opening tool in between the tab with the arrow on it and the battery below it.

    • Pry the tool upwards to disengage the battery.

    • You can disengage the battery with your finger rather than an opening tool, although it takes quite a bit of force and you may need strong nails.

  4. jSWHlIjY6pQP1iaJ

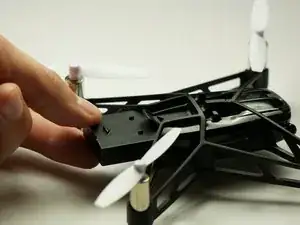

    • Pull the battery fully out using your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
