Parrot Hydrofoil Orak Lever Arm Replacement

Geschrieben von: Justin Connerly
  • Kommentare: 0
Parrot Hydrofoil Orak Lever Arm Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

1 Minute

Einleitung

This guide will detail the process for removing the lever arm on the hydrofoil boat. If the lever arm won't raise when the drone is powered on or is broken, you may need to use this guide to access and remove the lever arm.

  1. cJKwSTi3tMPNHYim

    • Place the boat so that the front faces to the right.

  2. 4WmXVkpFDbx5pWbS
    4WmXVkpFDbx5pWbS
    gXG5G3dpSSPAZpZo

    • Remove the far left 1cm screw using a T8 screwdriver.

  3. p1TbkRUGbjIrlcEU

    • Remove the rudder.

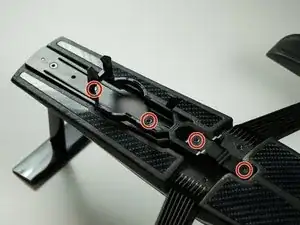

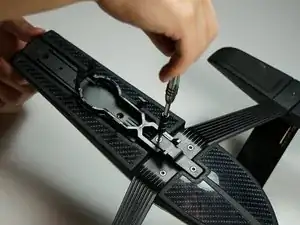

  4. 2nRFscAwQILG4ju6
    2nRFscAwQILG4ju6
    SScLw4cth1boFi1N
    nqnkqauZxjbPDrFU

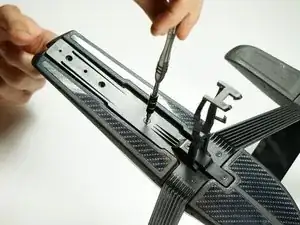

    • Remove the four remaining 1cm screws with the T8 screw driver.

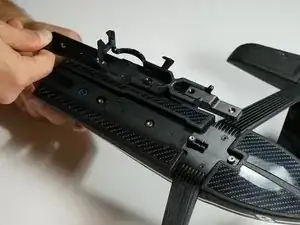

  5. YBjMRooRvJZhkiSB

    • Lift up on the plastic piece that is securing the lever arm.

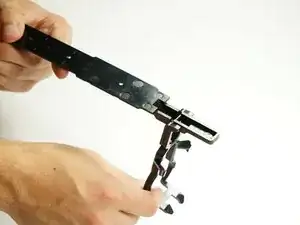

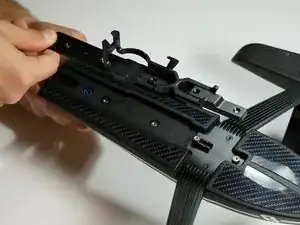

  6. r3HTprRZ6MCA4CJq
    r3HTprRZ6MCA4CJq
    HGOigUHKRL25T5Ig

    • Flip the plastic part upside down to reveal where the lever arm sits.

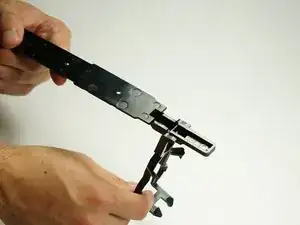

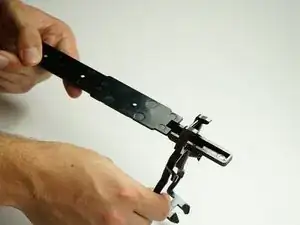

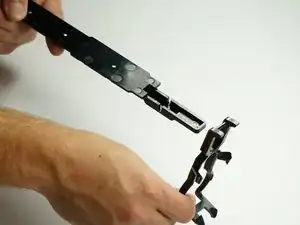

  7. vIOTLm1SEHHSrXwK
    vIOTLm1SEHHSrXwK
    HyPmMIKaHrsLFqay
    Cbm5KAsuj6Aaxymd

    • Lift the lever arm from the slot it is in and slide off of the end of the plastic piece that was holding it to the boat.

Abschluss

To reassemble your device, follow these instructions in reverse order.
