Parrot Skycontroller 2 Joystick Replacement

Geschrieben von: Alec Diaz
  • Kommentare: 0
Parrot Skycontroller 2 Joystick Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

25 Minuten

Einleitung

If you plan on replacing the joysticks in your Parrot Skycontroller 2, then please look at our troubleshooting page to help fix any issues. If the joysticks will not work or cannot be cleaned, then it is necessary to replace them. To replace the joysticks, use this guide.

Before beginning this repair please reference our Battery Replacement Guide to properly disconnect the battery to allow for safe working conditions.

  1. LHvCQYg3bM1ryXYi
    LHvCQYg3bM1ryXYi
    BsQ2n2LTjxhdv2Bo
    eTfc6VHDDCdMcPJ2

    • Flip your controller face down.

  2. O64eNDlvSGW5odmk

    • Remove one 9mm screw using a #4 flathead screwdriver.

  3. EspMWqXoDUpQdVIa
    EspMWqXoDUpQdVIa
    hKV2jSywrKjbBsyL
    KuXIwdJA5LmX2FHN

    • Insert the plastic opening tool into the top of the cover and pry upwards to lift the battery cover.

    • Remove the cover by pulling up and out.

  4. iVA2HqtXQI2MBhyN
    iVA2HqtXQI2MBhyN
    cOfTYFsBXFhcRhZ2
    gfWXclfjlJhi5KH1

    • Pull the connectors out by gently pushing the tabs and pulling up on the connector.

    • Disconnect the battery from the remote by pressing the white tab and pulling the connectors apart.

  5. 3PEOjDo4WNoG3lSj
    3PEOjDo4WNoG3lSj
    TXClQhnXWPRUeOD3

    • Remove the battery from its brackets by pulling up on the ends of the battery.

  6. HAg3vF6UcVQa21E1

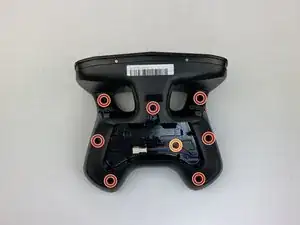

    • Remove the seven black 11mm screws using the Torx TR6 screwdriver

    • There is a hidden screw located behind the sticker in the battery compartment.

    • Pull back the sticker with your finger nail and remove the one black 11mm screws using the Torx TR6 screwdriver

  7. 3PiYUFQcxnXBbdF4
    3PiYUFQcxnXBbdF4
    f1ZeFFNN4A6OivBF
    VLtARYYRgjNyFAmv

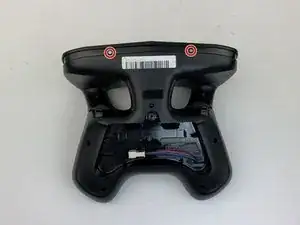

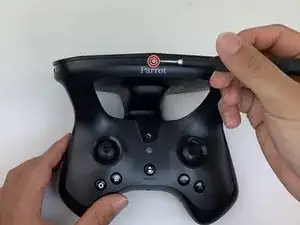

    • Remove the seven silver 4mm screws from around the edge of the top plate with the Torx TR6 Screwdriver.

    • The opposite side to the third picture has a screw located on each side of the USB port.

  8. 2Td5QMPA5DGmvLqv

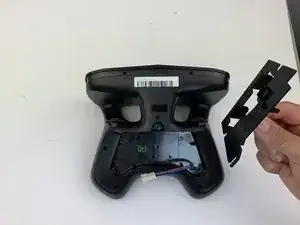

    • Remove the battery compartment plate by pulling up and out.

  9. NbmUTyngSNWiF4bT

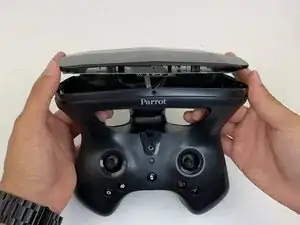

    • Remove the top plate by pushing out on the corners with your hand.

    • Be careful to not pull too hard on the cable.

  10. cHjrj2qfCWX6bchA
    cHjrj2qfCWX6bchA
    3OvNqrUE2RV2aa4L

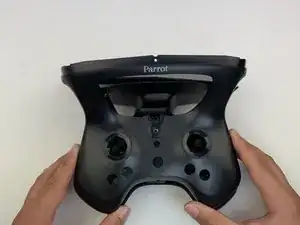

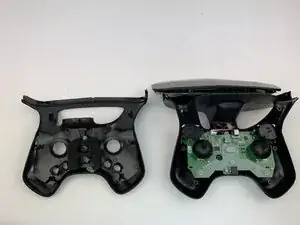

    • Remove the face plate by pulling up and out.

    • Buttons will fall out when this plate is removed.

  11. CJkm3YXvtNowEA1O
    CJkm3YXvtNowEA1O
    AjOjRsuXBpWIRGfQ
    LbUYHConaONUKobN

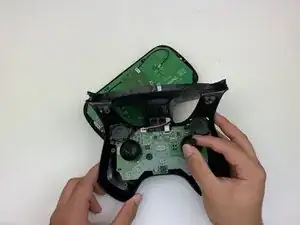

    • Firmly grasp the end of either joystick.

    • Pull the joystick up and out while grasping the other side of the controller.

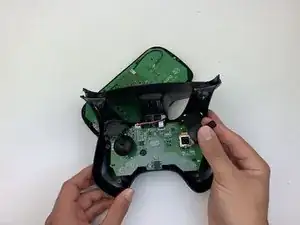

    • Once both joysticks have been removed, this is what it should look like.

    • Some force may be needed to remove the joysticks.

    • Repeat this process for the other side as well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
