Einleitung
A short repair guide to fix a broken toy car from Paw Patrol manufactured by Spin Master. The fault is, that the actuator button only works on defined positions of the fork. It is the garbage truck of the dog Rocky.
-
-

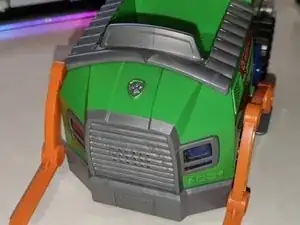

This is the truck we are talking about. The Spin Master garbage truck of the dog Rocky from the TV series Paw Patrol
-
-
-

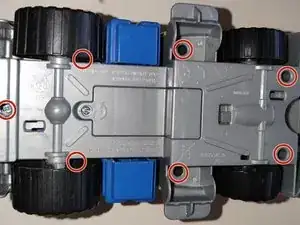

We need to remove seven PH#1 screws. I recommend a along screw driver without bit holder to do this.
-

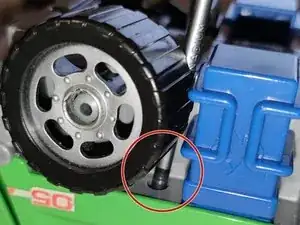

Two of the screws are hidden underneath the rear tires. You have to slide your screw driver behind the tire down to the screw hole. The tires are not removable.
-
-
-
You can now remove the bottom half from the top.
-

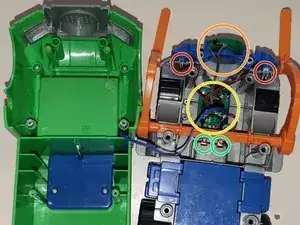

Inside the truck you will find two LEDs for the lights.
-
A speaker for the sound.
-
A small PCB.
-

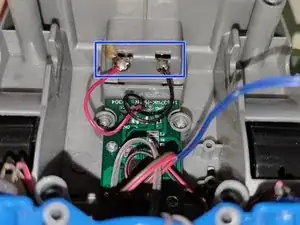

Also there are the connections from your battery holder
-
You can remove the orange fork to get a better view of the contacts.
-
I had to reflow them with the soldering iron and bent them a little bit down to avoid further touching of the fork shaft
-
-
-

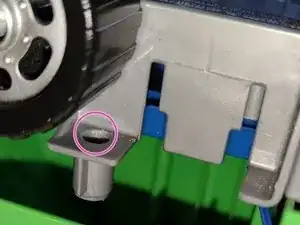

If you had all screws falling out, you can slide the two blue trash cans down, to easily place the two hidden screws.
-
Gratulations, you are done!
-
Go the steps revers to reassemble the toy.
