Einleitung
If your Pentax Optio WG-3 GPS camera photos are not clear, will not focus, or the photos are distorted, refer to this guide to replace the lens assembly. When handling the orange ribbon cables use extreme caution to not pull on them because these cables are extremely fragile.
Before starting, be sure the device is fully powered off and be sure to remove the battery.
Werkzeuge
-
-
Turn over the camera so the screen is facing up.
-
Remove the four 5 mm Phillips #000 screws that secure the outer cover.
-
-
-
Flip over the camera so the bottom is facing up.
-

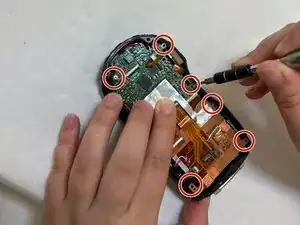

Remove the single Phillips #000 screw.
-

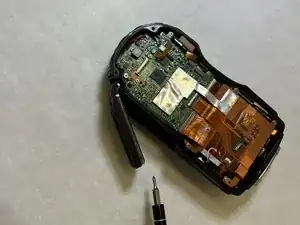

Remove the cover.
-
-
-

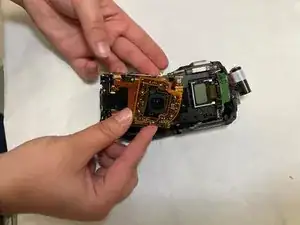

Flip the circuitry so that the lens is facing up and the flash component is on your right.
-
Identify the orange ribbon tape surrounding the lens.
-
To reassemble your device, follow these instructions in reverse order.
