Pentax PZ-10 Back Cover Locking Switch Spring Replacement

Geschrieben von: Ryan Su
  • Kommentare: 0
Pentax PZ-10 Back Cover Locking Switch Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

If the back cover of the Pentax PZ-10 won't lock in place, the spring that holds the door in place may need to be replaced.

  1. aLGWLZBiqpmPFTiA

    • With the lens face up and the bottom panel of the camera facing you, remove the two 7mm screws on the left using the J0 screwdriver.

    • Remove the six 4.3mm screws in the middle and right of the panel using the J0 screwdriver.

    • Pull off the bottom casing to remove.

  2. MKKPhTiTOifup2NU

    • With the screws removed, the bottom casing should come off very easily by pulling on the casing.

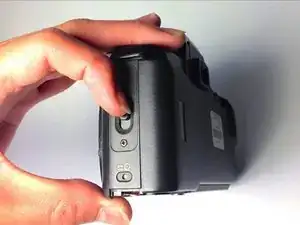

  3. igyJJlBJdeiXDLyE

    • Place the camera on its side so the lens is facing left.

    • Press down on the locking switch on the side panel facing you.

  4. DjJkrb2HYXbTCGXK

    • With the door unlocked, rotate the device to access the bottom.

  5. jX6d2ilDHCYC2bJT

    • Using a pair of tweezers, gently remove the metal tab securing the back door axle.

    • The door will come loose at this point, watch for any loose parts that may also come out.

  6. UGxQTxyrlGUEUltt

    • Once the back cover is fully removed, remove the two 4.35mm screws attaching the cover of the unlocking switch, and remove the plate.

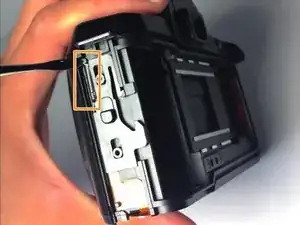

  7. YU2wft5iGClQ3DUL

    • Locate the spring at the upper left corner of the face, and pull the rings of the spring off of the pins to remove it using plastic opening tools.

    • You are now ready to replace the spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
