Performance Tool W50042 Trigger switch Replacement

Geschrieben von: David
  • Kommentare: 0
Performance Tool W50042 Trigger switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

50 Minuten

Einleitung

The Foward/Reverse switch on this Performance Tool WMR-W50042 impact wrench became damaged preventing from running in reverse and therefore the impact was not useful. This guide will provide instructions to replace the trigger switch on a Performance Tool impact wrench.

  1. yYE3Xnvtgfb2Kddc

    • Remove the battery by pressing the yellow tabs on both sides then pull the battery out

  2. IidOaIlJdDyorT4G
    IidOaIlJdDyorT4G
    fEQDlvGLDAPkXVoK
    ooNDxhAklBFMmBBK

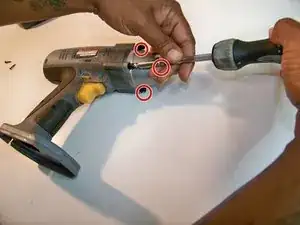

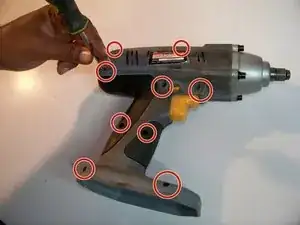

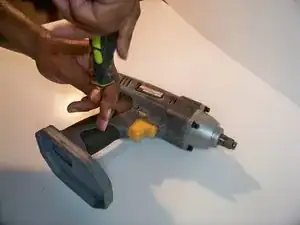

    • Remove the nine 1/2 inch Phillips head screws

  3. WPiJTVy2ePJd345g
    WPiJTVy2ePJd345g
    YCJpFgfcIu6javOl
    ooqBnJIvMbhvBic4

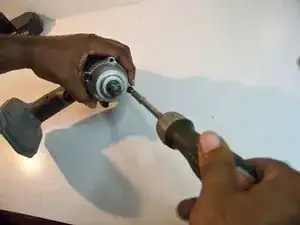

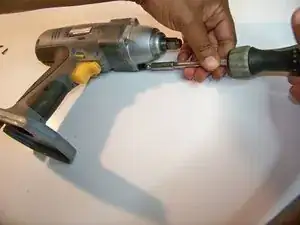

    • Use a T-25 hex bit to remove 4 1'1/2 hex head screws

  4. D5hajyXcQKyO3NY4
    D5hajyXcQKyO3NY4
    MVIfc5SNvkagvlhY
    3W41DWxNIal3RgME

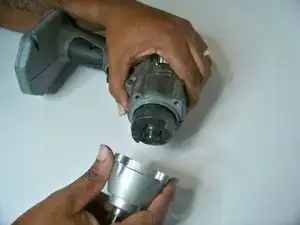

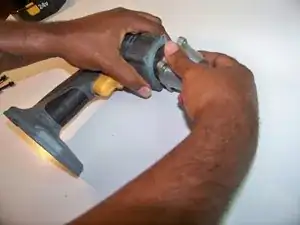

    • Remove shaft cover

  5. anaqEmfEO5maGIUN
    anaqEmfEO5maGIUN
    AiGjmad221IVgqOy
    jTy2ig15d2iguVRf

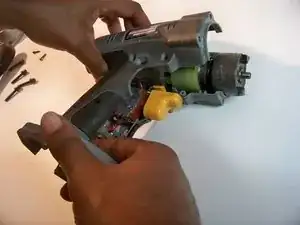

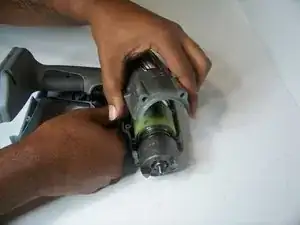

    • Remove the case

  6. ZkpXKIsCOhpghmDh
    ZkpXKIsCOhpghmDh
    CMsCchOwB1HwfnYT
    FqIfTTFPDHhVECt2

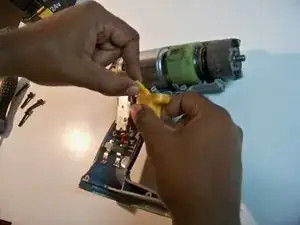

    • lift the trigger switch to remove the direction switch

  7. 2BvQ6RamAiBlJume
    2BvQ6RamAiBlJume
    u3AtZErSVbmSUUZS
    YUUldd4JglPb2Zm2

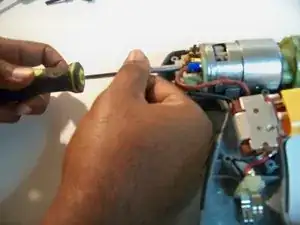

    • unscrew the red wire from the motor (Phillips head screw 1/4 inch)

  8. 4Fo12oQlGXPcVeYu
    4Fo12oQlGXPcVeYu
    lEwQoROh5MrHB3GD
    vprZkDAZdi4qQqMT

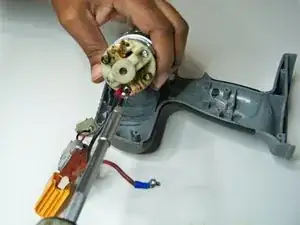

    • pick up the motor and remove the black wire (phillips head screw 1/4 inch)

Abschluss

To reassemble your device, follow these instructions in reverse order.
