Petnet SmartFeeder SF10E Food Dispensing Wheel Replacement

Geschrieben von: Louis Squitieri
  • Kommentare: 1
Petnet SmartFeeder SF10E Food Dispensing Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

6 - 9 Minuten

Einleitung

The SmartFeeder has a rubber wheel between the top food basin and the lower metal tray. This wheel may become stuck or damaged during operation. Get a friend to help you hold the wheel housing open while you remove the wheel in Step 4.

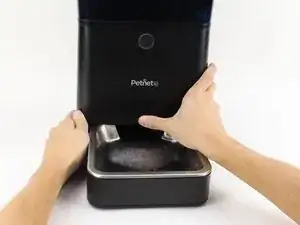

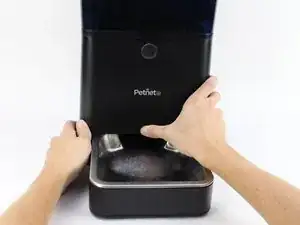

  1. Pt2PQK5fAqWZUppS
    Pt2PQK5fAqWZUppS
    JG3yJTmyJY6WcJid
    Na5yVnENFkZVlJJS

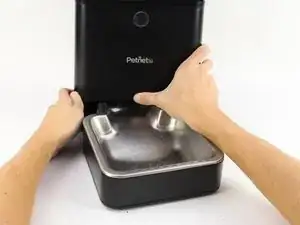

    • Eject the SmartBowl by pressing the button located at the front of the SmartFeeder base.

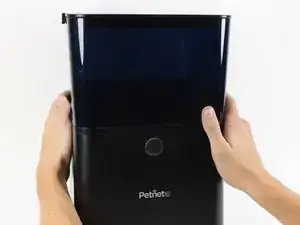

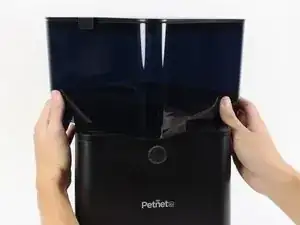

  2. wJseJtkREhyS41CD
    wJseJtkREhyS41CD
    FHF5bny4CNbpNSqq
    OsxDBQZyiZpKiRMu

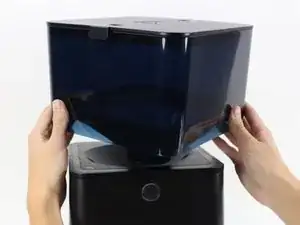

    • Remove the food tub by twisting it counter-clockwise with both hands and lifting it up.

  3. 56r1EJFBYfQTf3a6

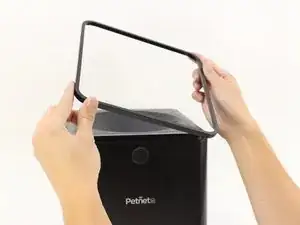

    • Remove the black plastic gasket from the top of the SmartFeeder by placing your fingers on the side of it and lifting up.

    • It should come off very easily.

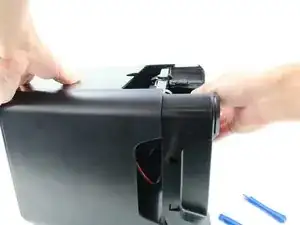

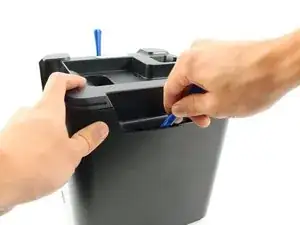

  4. 2QaGlVijYlmIIuDs
    2QaGlVijYlmIIuDs
    fsjYICM6BhVvGBci
    4M5uDwbDHkTnVPhl

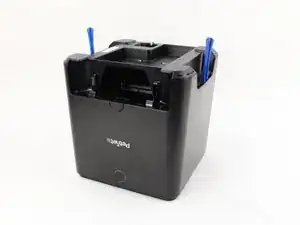

    • Flip over the SmartFeeder by using both hands.

    • Partially open the outer case of the SmartFeeder by wedging an iFixit Opening Tool on each side.

  5. uiVuCFm1HSUjmyEq
    uiVuCFm1HSUjmyEq
    BkR6gRm6jILjRm5S

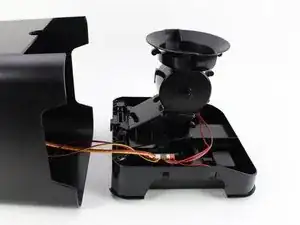

    • Turn the SmartFeeder on its side and with one hand on the base, carefully pull out the central section.

    • Place the bottom piece of the device right-side up.

  6. MISMvrBwObuqsKDZ

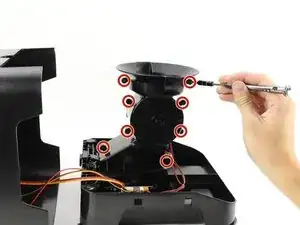

    • Remove the eight 11mm screws from the central pillar using a Phillips #1 screwdriver.

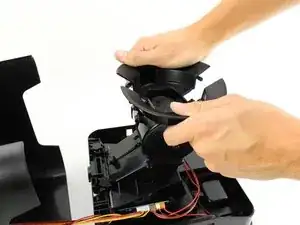

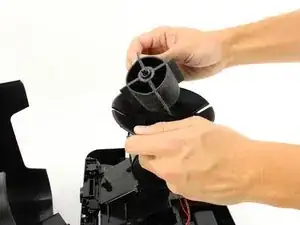

  7. iue3GyomboYY51Tl
    iue3GyomboYY51Tl
    M3UnU4EbARfZIEnm

    • Pull apart the two sides of the central pillar at the top by using both hands.

    • The two sides will not completely separate at the base.

    • With the two halves partially separated, pull out the rubber wheel with your hand.

    • A small black rectangular piece may fall out of the chute when the halves are partially separated. Reattach this by reaching into the chute and putting the pins from the piece into the holes on the side of the chute.

Abschluss

To reassemble your device, follow these instructions in reverse order.
