Petzl E03 050 Headlamp Light Bulb Replacement Guide

Geschrieben von: Carla
  • Kommentare: 3
Petzl E03 050 Headlamp Light Bulb Replacement Guide

Schwierigkeitsgrad

Very easy

Schritte

8

Zeitaufwand

2 - 3 Minuten

Einleitung

Is your light bulb burned out or producing dim light? You might need to replace the light bulb. Replacing the light bulb is necessary for the headlamp’s primary function.

  1. rOrYbwMmlII43e5v

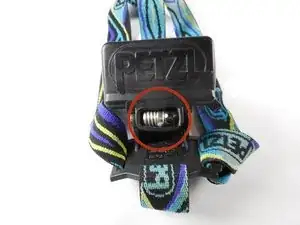

    • Check for a spare bulb in the spare bulb compartment located on the back of the battery housing (found behind the mount assembly). If no spare bulb is found in the spare bulb compartment you will need to purchase a replacement 3V incandescent bulb from a reputable retailer

  2. 16631vl52cNMMSKf

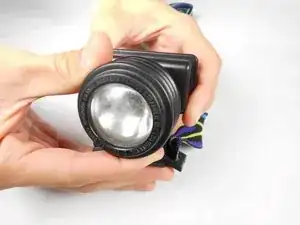

    • Turn the lens piece counterclockwise (left) until it is fully extended.

  3. o23wnJLQjGnpIZQR

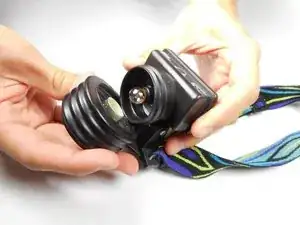

    • Remove the lens piece by firmly pulling it away from the battery housing.

  4. kpWB1nOIMNTF1Ajh

    • Turn the bulb counterclockwise (left) until it becomes free. Safely discard the old bulb.

  5. uaPlopxQKCCaNFYf

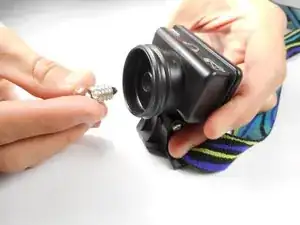

    • Install the new bulb by inserting it into the socket.

  6. WerTCrHGOJTLXuGm

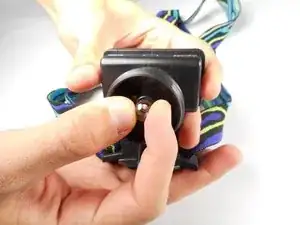

    • Rotate the bulb clockwise (right) until it is firmly fixed in place.

  7. eKTmO6SAGrOSm1x2

    • Press the lens piece onto the front of the battery housing.

  8. wveLtebSGbUfYSbr

    • Turn the lens piece clockwise (right) to the “On” position. If the light fails to illuminate after turning the lens piece to the “On” position you may have to replace the batteries.

Tinte & Feder

Carla

Mitglied seit: 20/10/14

131 Reputation

3 Kommentare

Ha I wonder how many people don’t even realize there’s a replacement readily available on their head! Thanks for sharing.

jmania -

This was my father headlamp. Want to continue using it.. makes me feel like he is this with me

laura.odonnell52 -

Is it also possible to replace the old 3v light bulb with an LED light?

bertkling -
