Einleitung

  1. 1BIKGoKMmTqGkQel
    1BIKGoKMmTqGkQel
    FV6xTuBWK4lNpblE
    QX12CdNtDWEDxxqJ

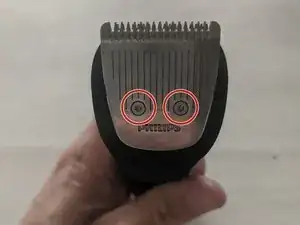

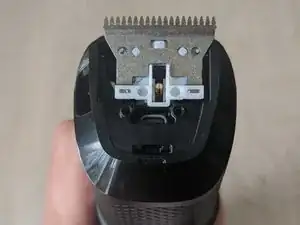

    • Remove the indicated screws with a T-6 torx screwdriver.

    • Lift of the second blade.

  2. ZJscs4RtjkVVPZpe
    ZJscs4RtjkVVPZpe
    TXcfUegwhoPFoRHy
    FBFXCVwPZ1rFLmbZ

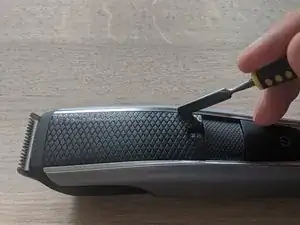

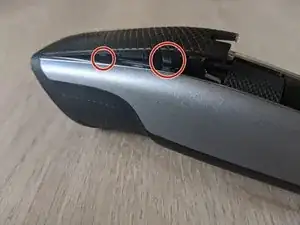

    • Pry your metal spudger between the upper cap en the silver lower panel.

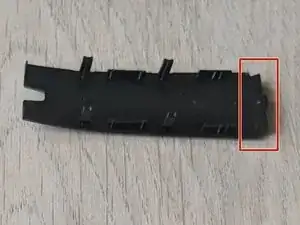

    • Unlatch the four notches.

    • Lift the cap out of the top end.

  3. to5jNHCRiXKgEKpJ
    to5jNHCRiXKgEKpJ
    njnv2Ewgx224dKbN
    lE2KXmLCw6uyXQEn

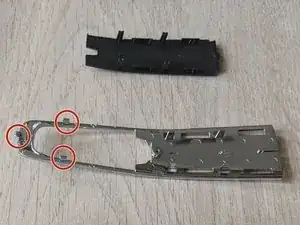

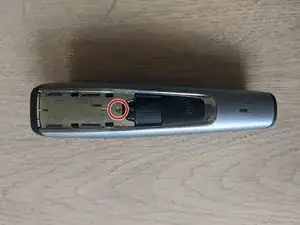

    • Remove the indicated screw.

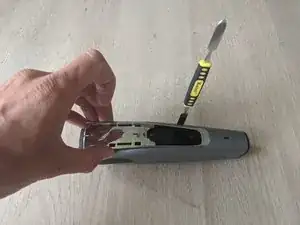

    • Pry between the body and the lower panel to spring loose the two latches on the sides.

    • Lift the panel out of the third latch.

  4. EaebwVt5hMtICbKu
    EaebwVt5hMtICbKu
    h1kBPF1ai2TluLtT
    SVND2HToKXqjUiVL

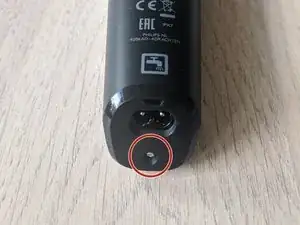

    • Remove single screw at the bottom.

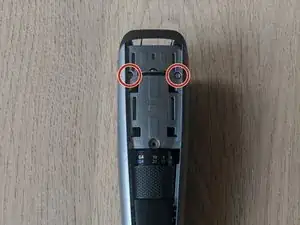

    • Remove the screws under the lower panel.

    • Gently pry the main body off, by moving the metal spudger from the bottom, where it easily gets between the two parts, to the side.

    • When the spudger reaches the notches, click it open.

    • Be sure not to try and pry open other spots than the notches!

  5. 1G13y5scAmHOAuEq
    1G13y5scAmHOAuEq
    r6mHpE34wi6VQUPB
    Wl2ITr6hATC2nmmn

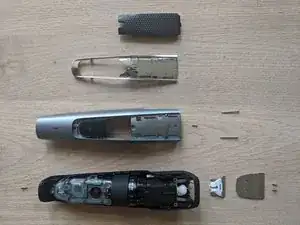

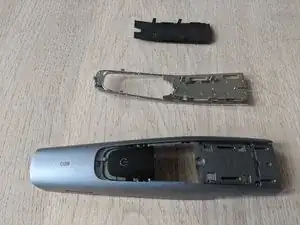

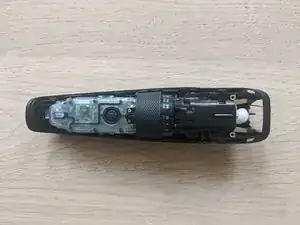

    • This is as far as I went, since I opened it only for cleaning purposes.

    • All components are visible, but there is an extra layer of teardown possible.
