Philips DPM8000 Display Replacement

Geschrieben von: Andreas Holl
  • Kommentare: 1
Philips DPM8000 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

6 Minuten

Einleitung

Ensure to have your replacement display lying next to you before you start removing the defective one.

You should also have a little bowl ready to set aside screws and other small parts.

  1. QcOIHrTMFoARG5NG

    • Before you start disassembling your device make sure that it is turned off.

    • Put on the Anti-Static Wrist Strap and clamp the end of the band to an unpaintet spot of a radiator.

  2. 4koDSDCqa1fdd6QW
    4koDSDCqa1fdd6QW
    4CCgqZuIaMfwMKhd

    • Remove the battery lid

  3. wf5kYP6E5dEiOiCw
    wf5kYP6E5dEiOiCw
    lquX1YRRkVoXXaGE

    • Remove the battery.

    • The battery lid is designed to function as an instrument for this task.

  4. eLNXJ1TKwBejQlIK
    eLNXJ1TKwBejQlIK
    IgKXXLHuIhAZPAuM
    XfkQXx4roeWWltIr

    • Unscrew the six Torx #4 (5,3 mm) screws from both sides of the device

    • Collect the removed screws in a bowl or something comparable, otherwise they might get lost.

  5. NnbDw5vkEDeQVw6E
    NnbDw5vkEDeQVw6E
    Y2CLPQTKuULZnDSW
    B1aKYNUCfPtHuJXd

    • Remove the upper ornamental part from the housing.

    • If your fingernails are not long enough you can use a plastic opening tool.

    • When reassembling the device be aware that the six shackles on the sides of the upper ornamental part need to be placed inside the frame.

    Be carefull, the newer versions of the unit have the display “glued” to front cover to stop dust getting between the outer cover and display. The display now comes out with front cover and as such care must be taken with cables

    Somco Cape -

  6. EANPckjPhXOuhATb
    EANPckjPhXOuhATb
    prRgbwJSitWZDYFM

    • Lift up the housing.

    • The display as well as the speaker are connected to the motherboard. Therefore you need to be careful not to harm those connections.

  7. VnAL3tr5hGKNdV1N
    VnAL3tr5hGKNdV1N
    kgA3fopJQRXMbr56

    • Unlock the connection between display and motherboard by pushing open the brown cleat.

    • It is recommended to use a spudger or a comparable tool for this step.

    • If the connection is not completely open, one of the involved components could easily be harmed.

  8. kqdGTx5IInYwLjF4
    kqdGTx5IInYwLjF4
    qtAS35SLPOsSvRm2

    • Separate the connection by pulling out the display cable.

    • If the cable does not come out easily, the connection is probably still locked.

    • When reconnecting the display to the motherboard don't forget to lock the connection, otherwise it will eventually come loose and you will have to redo the first eight steps of this guide.

  9. OqRHqP1LRQXBSdpm
    OqRHqP1LRQXBSdpm
    TCDhi2dQWisVs3F3

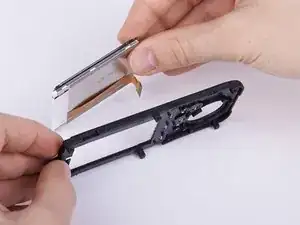

    • Abstract the defective display from the housing.

  10. XSKMKlLsSlOuSfYF
    XSKMKlLsSlOuSfYF
    nE3sMinVhUeCoS2i

    • Place the new display in the housing.

    • Until the fall of 2015 the DPM8000 was delivered with a display and a separated display glass. Since then the display and the glass come as one part.

Abschluss

To reassemble your device, follow these instructions in reverse order beginning with step 8.
