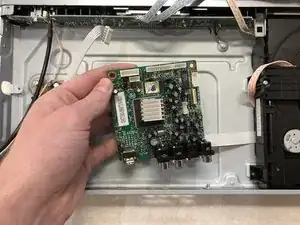

The audio video ports on the DVD player can become unresponsive over time. This guide will show you how to replace the audio video ports on your DVD player.
Werkzeuge
-
-

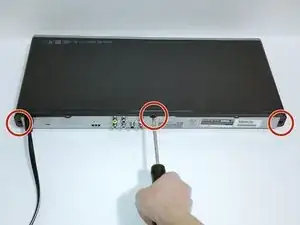

Remove the three 6.4 mm Phillips #1 screws on the back of the device with a Phillips head screwdriver.
-

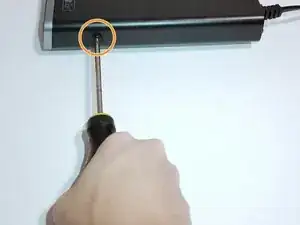

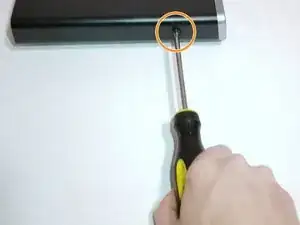

Remove the 6.4 mm Phillips #1 screws on each side of the device.
-
-
-

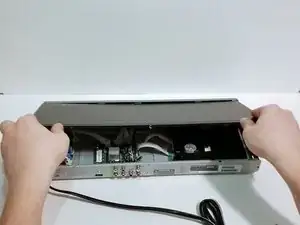

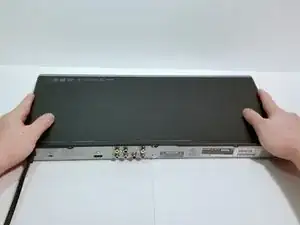

Remove the top plate of the DVD by firmly grasping the player on both sides.
-
Shift the top plate towards the backside of the player.
-
Lift the back half of the top plate up to remove it from the player.
-
-
-

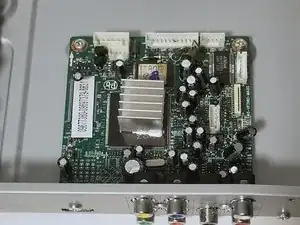

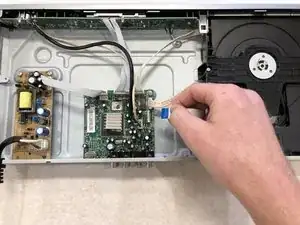

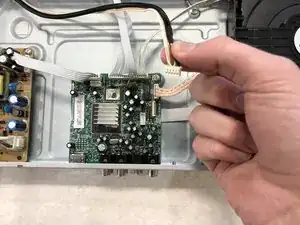

Unplug the one ribbon wire and the five bundled cable connectors that are plugged into the motherboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
