Philips DVP5992-F7 HDMI port Replacement

Geschrieben von: Nathan Sarti
  • Kommentare: 0
Philips DVP5992-F7 HDMI port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Over time, the HDMI port can become unresponsive. This guide will show you how to replace an unresponsive HDMI port on your Philips DVP5992-F7.

  1. uVWcoligBukUvDgW
    uVWcoligBukUvDgW

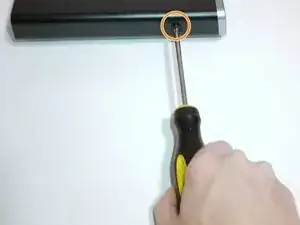

    wWNtLt5IGNFUwN2m

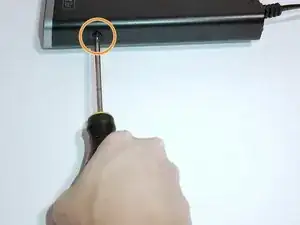

    y1flCMrSj4Xjo2TD

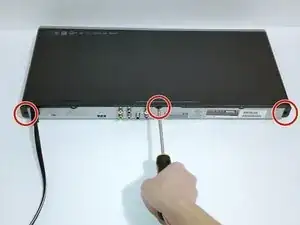

    • Remove the three 6.4 mm Phillips #1 screws on the back of the device with a Phillips head screwdriver.

    • Remove the 6.4 mm Phillips #1 screws on each side of the device.

  2. vE6RECVnVkRdMwGc
    vE6RECVnVkRdMwGc

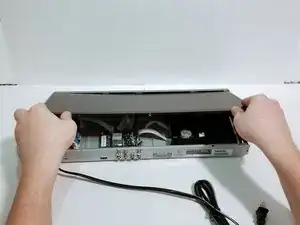

    lGk6IQR3dkOvlhYM

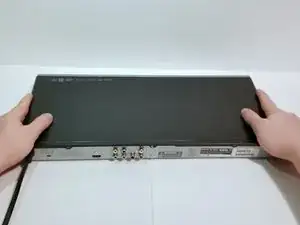

    • Remove the top plate of the DVD by firmly grasping the player on both sides.

    • Shift the top plate towards the backside of the player.

    • Lift the back half of the top plate up to remove it from the player.

  3. 1qABv1HnysLISyLJ
    1qABv1HnysLISyLJ
    Sgpse1pZpAk2HwSg
    1kjFGxJbJDlAKfFc

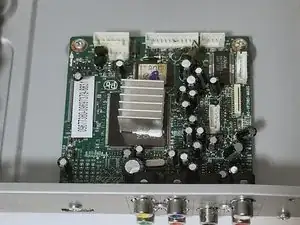

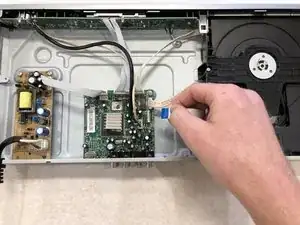

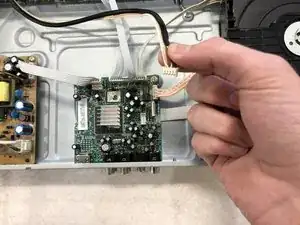

    • Unplug the one ribbon wire and the five bundled cable connectors that are plugged into the motherboard.

  4. NnsiLwtgbh2fDFCE

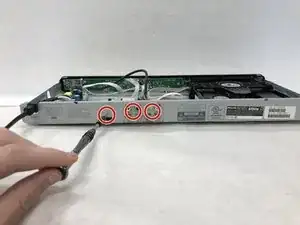

    • Remove the three 4.76 mm #1 Phillips head screws located on the back of the DVD player.

  5. wPWMSWg6EJhUTHCl

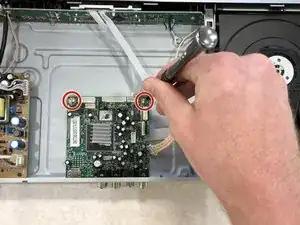

    • Remove the two 7.94 mm #1 Phillips head screws from the motherboard.

  6. KgeTBaYDOwAaZZyB

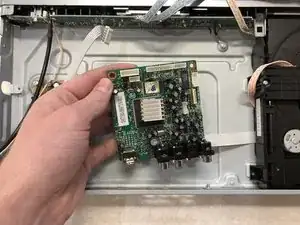

    • Remove the motherboard from the DVD player.

Abschluss

To reassemble your device, follow these instructions in reverse order.
