Einleitung
DVD trays can easily become unresponsive or broken. This guide will teach you how to replace a broken or unresponsive tray for the Philips DVP5992-F7.
Werkzeuge
-
-
Plug in the DVD player.
-

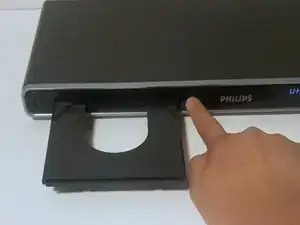

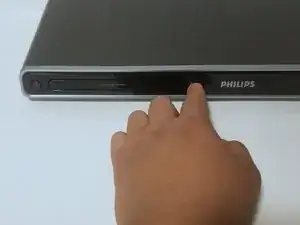

Press the eject button to open the tray.
-

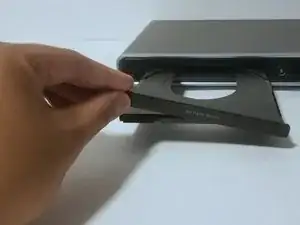

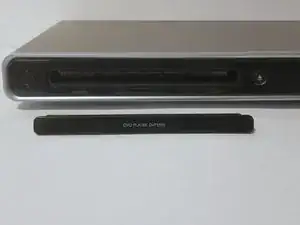

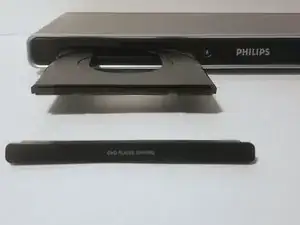

Push up on the tray faceplate to remove it.
-
-
-
Press the eject button to re-insert the tray.
-
Unplug the DVD player after the tray is closed.
-
-
-

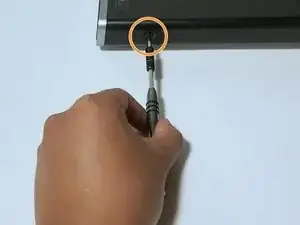

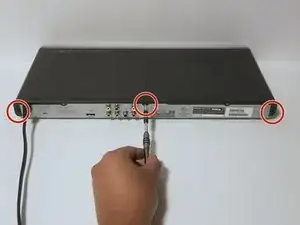

Remove the three 6.4 mm Phillips #1 screws on the back of the device with a Phillips head screwdriver.
-

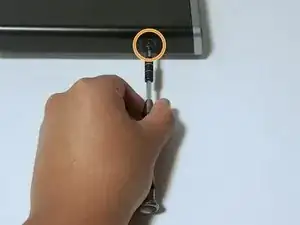

Remove the 6.4 mm Phillips #1 screws on each side of the device.
-
-
-

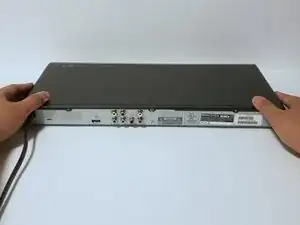

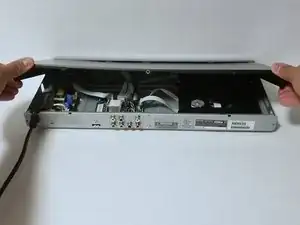

Remove the top plate of the DVD by firmly grasping the player on both sides.
-
Shift the top plate towards the backside of the player.
-
Lift the back half of the top plate up to remove it from the player.
-
-
-

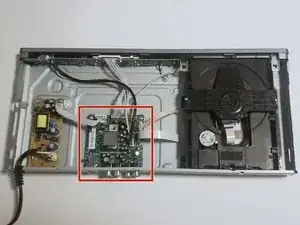

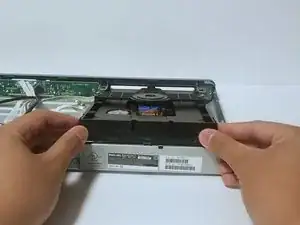

Locate the motherboard within the DVD player.
-

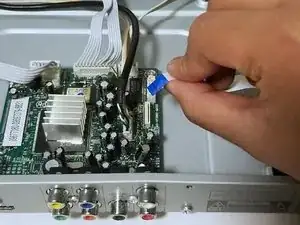

Firmly grasp the ribbon wire and unplug it from the motherboard.
-
-
-

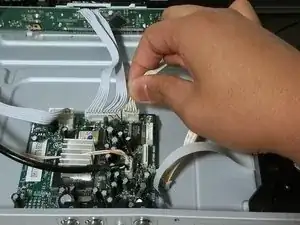

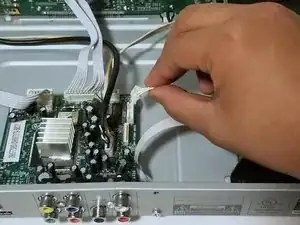

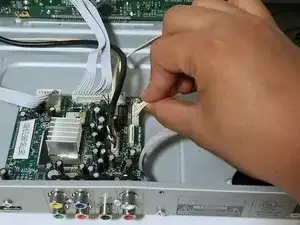

Firmly grasp the bundled cable connector that attaches the tray to the motherboard.
-
Gently pull upwards to remove the bundled cable connector from the motherboard.
-
-
-

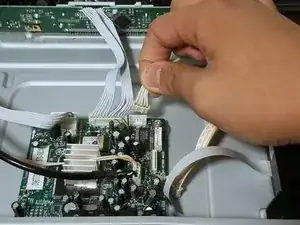

Firmly grasp the second bundled cable connector that attaches the tray to the motherboard.
-
Gently pull upwards to remove the second bundled cable connector from the motherboard.
-

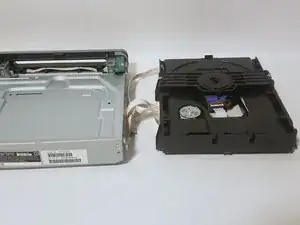

To reassemble your device, follow these instructions in reverse order.
