With constant use, the USB port can become broken or unresponsive. This guide will show you how to replace the USB port on your Philips DVP5992-F7.
Werkzeuge
-
-
Remove the three 6.4 mm Phillips #1 screws on the back of the device with a Phillips head screwdriver.
-

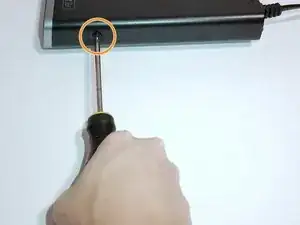

Remove the 6.4 mm Phillips #1 screws on each side of the device.
-
-
-

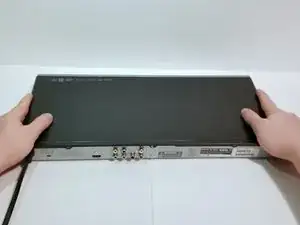

Remove the top plate of the DVD by firmly grasping the player on both sides.
-
Shift the top plate towards the backside of the player.
-

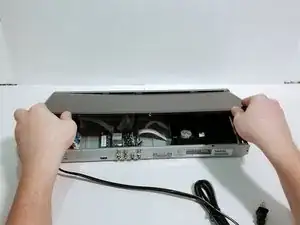

Lift the back half of the top plate up to remove it from the player.
-
-
-

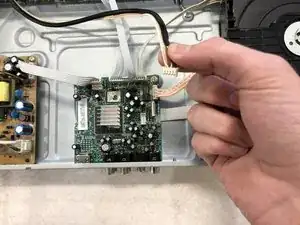

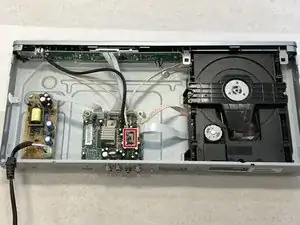

Locate the bundled cable connectors that attaches the USB port to the motherboard.
-

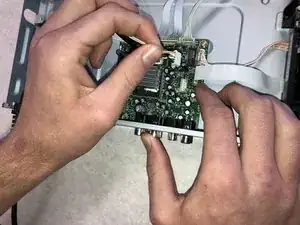

Firmly grasp the bundled cable connector and lift it from the motherboard.
-
-
-

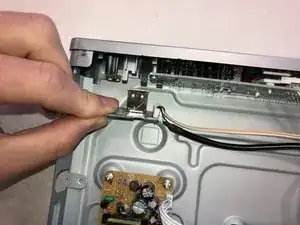

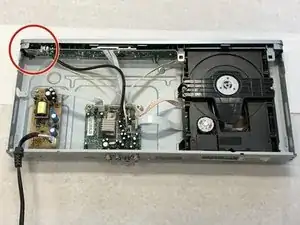

Locate the area behind the USB port within the interior of the DVD Player.
-

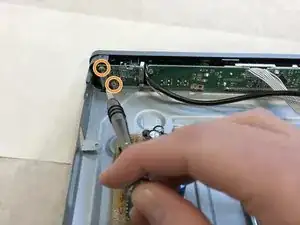

Unscrew the two 6.35 mm Phillips #1 screws located behind the USB port.
-
-
-

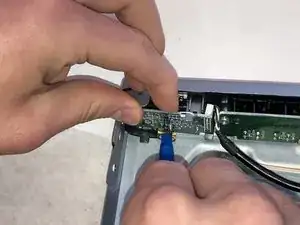

Use the plastic opening tool to press down on the brass clip that holds the USB port in place.
-
Pull back the USB Port to remove it from the DVD player.
-
To reassemble your device, follow these instructions in reverse order.
