Philips Norelco 5801XL Blade Replacement

Geschrieben von: Ben Gibbs
  • Kommentare: 1
Philips Norelco 5801XL Blade Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 Minuten

Einleitung

Use this guide to remove the shaver head and replace the blades in the Philips Norelco 5801XL. The blades are sharp, so pay close attention when handling them.

  1. 3HdMmGJMLnNnMMoh
    3HdMmGJMLnNnMMoh
    wevWSnKXOJ2R6I1j

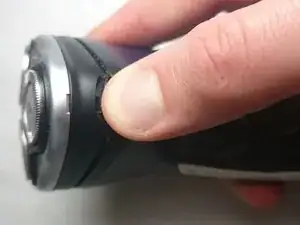

    • Press down on the black button below the shaver head.

  2. ipDYkcIEHpTviiCK
    ipDYkcIEHpTviiCK
    Tsbos2odqIwgwBtI

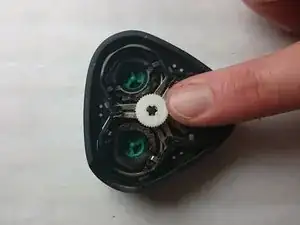

    • Turn the white gear counterclockwise to release the retaining bracket.

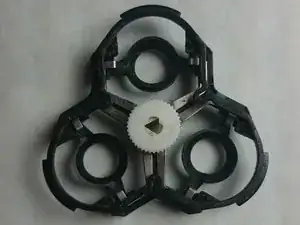

    • Remove the retaining bracket.

  3. qMVnFIJKChLdu1BT
    qMVnFIJKChLdu1BT
    ux6Cg2BZwYp21mRX

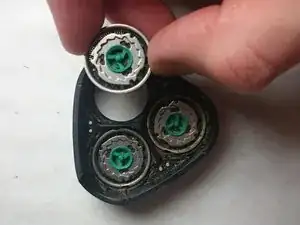

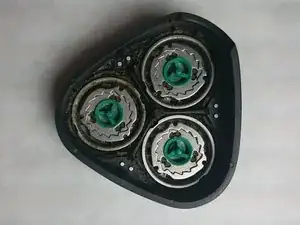

    • Remove the blades from the shaver head.

Abschluss

To reassemble your device, follow these instructions in reverse order.
