Philips Norelco BG2040 BodyGroom 7100 LED Board Replacement

Geschrieben von: August Post
  • Kommentare: 1
Philips Norelco BG2040 BodyGroom 7100 LED Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide will show how to take off a broken LED board, and replace it with a new one. You may need this if you notice the charging light on the Philips Norelco Bodygroom not lighting up while the product is on the charging stand. It is also necessary for this guide to show how to disassemble and reassemble the trimmer in order to get to the LED board. It is recommended to have the iFixit Pro Tech Toolkit since it will contain all tools necessary for this guide. Lastly, you will need to provide your own working LED board to replace the broken one.

  1. ChgAOHnSOtTIiuHH
    ChgAOHnSOtTIiuHH
    VwGf4bAHuNF6V2g5

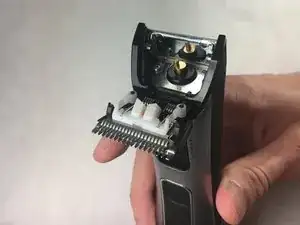

    • Place thumb behind trimming blade and push up to open.

  2. kdcH3Ckmbvh1cZdP
    kdcH3Ckmbvh1cZdP
    Kv1Q3oNHpVKtpnKO
    Ol1X4JQSjdSmGj3H

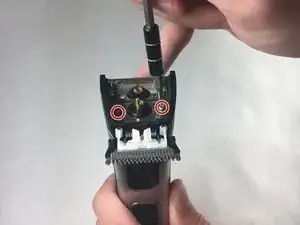

    • Remove two screws (M2 x 9.5) on metal plate with JIS 0 screwdriver bit.

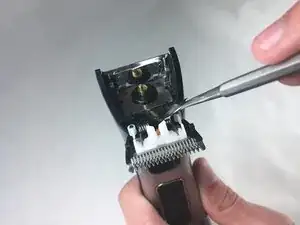

    • Use spudger to pry off metal plate.

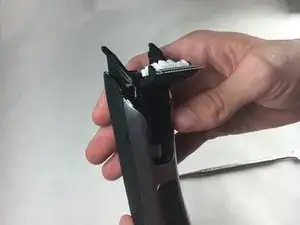

    • Slide up plastic housing to remove the trimmer.

  3. WSHcNPUp152QPuKS
    WSHcNPUp152QPuKS
    uEsUaLx6fZ1FCWcq
    TedPpL4VsvyEPmlD

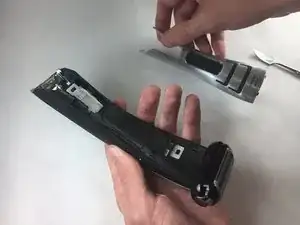

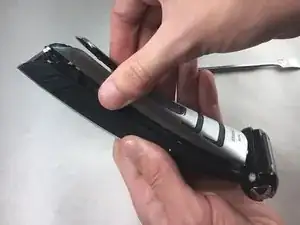

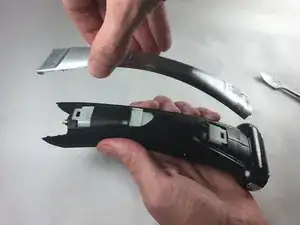

    • Slide chrome outer plastic towards removed trimmer.

    • Flip to the other side and repeat, sliding the chrome plastic towards removed trimmer.

  4. SODOKf5pWNIxoEbr
    SODOKf5pWNIxoEbr
    uIOrjCMa6hR2qkkK

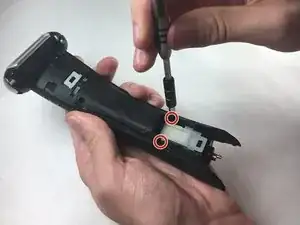

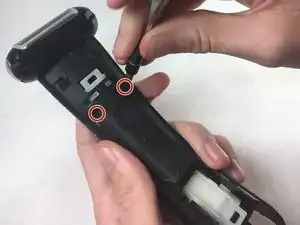

    • Remove two top screws (M2 x 6.9) with the JIS 00 screwdriver bit.

    • Remove two bottom screws (M2 x 6.9) with the same bit.

  5. ayRNkwMZ1XunF3Gm
    ayRNkwMZ1XunF3Gm
    CXOWB6BAaTJGBkJ3
    eh1KCWNnnCMRtIJe

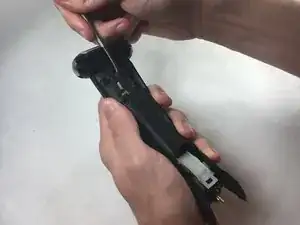

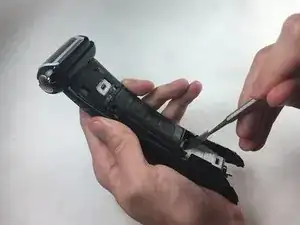

    • Use spudger to pry off top of the battery cover. WARNING: fairly difficult, be aware significant amount of force required.

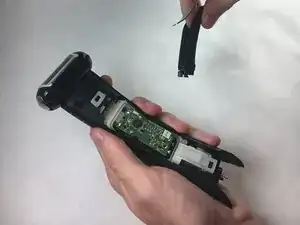

    • Use spudger to remove bottom of the battery cover, and remove it.

  6. m5K6EidQiSHsAp1S
    m5K6EidQiSHsAp1S
    nsHOJuPovVWZMpIH

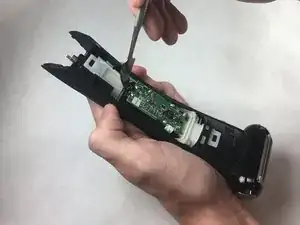

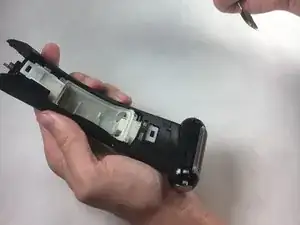

    • Use a nylon spudger to pry out battery pack and the attached LED board.

  7. UJBoGSUwgshEnPNU
    UJBoGSUwgshEnPNU
    LiBeTcYQx2DZ2yFu
    Q2iRO2RKSBUU3ZRP

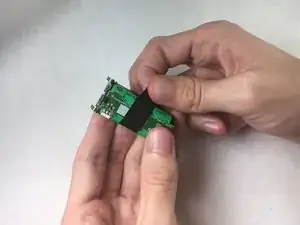

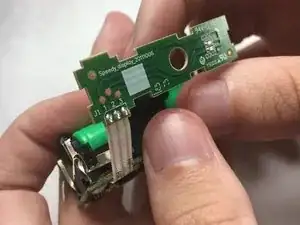

    • Unwrap electrical tape around the battery pack and LED board.

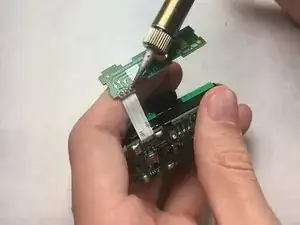

    • Desolder the LED board from the battery pack.

    • Solder the new LED board back to the connection to battery pack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
