Philips Norelco BeardTrimmer 3100 Blade Replacement

Geschrieben von: Darren Chu
  • Kommentare: 10
Philips Norelco BeardTrimmer 3100 Blade Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

If the blades of your beard trimmer are not working properly, there could be too much hair/dirt between the blades or the blade may have become worn out over time. The blade may need replacement. By following the steps in this guide you will have a new blade installed in no time.

Werkzeuge

  1. BlFvAxPbEHQifq1A

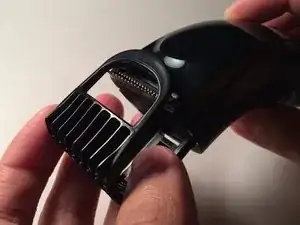

    • Remove the comb from the head of the trimmer.

  2. JYKdDZslfinKgqO6
    JYKdDZslfinKgqO6
    GiutoUEXkCIhgKmL

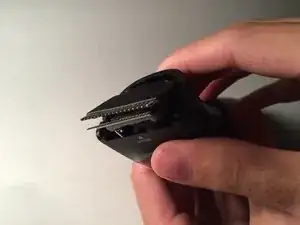

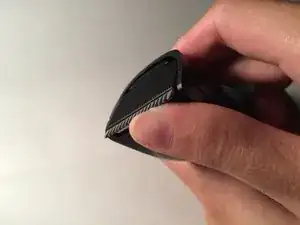

    • Place thumb underneath the blade; push upward to pop the blade off.

  3. 2RqGHgLJBYRISSDV
    2RqGHgLJBYRISSDV
    RwHAbNJ5ybrWeVam
    FwOOcGVRErJ1WSMT

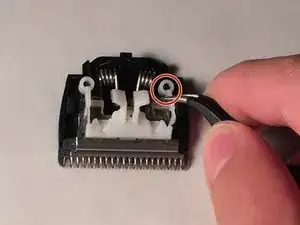

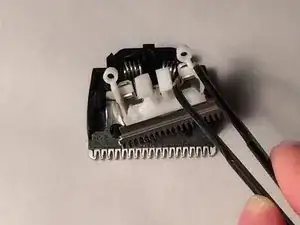

    • Grab the plastic arms with the tweezers and pull them apart from the base.

  4. oykdLcf6Bw6TEWBM
    oykdLcf6Bw6TEWBM
    SOEauvw5nf34nP5V
    1GZSBJTrC5B4UjBA

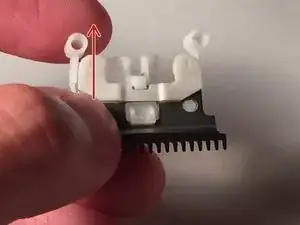

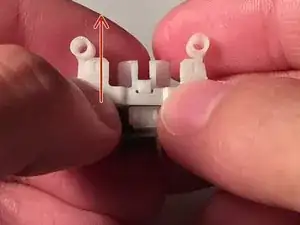

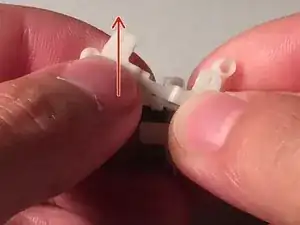

    • Remove the plastic casing from the underside of the blade.

  5. 2hkc2BJi5mJcpJFP
    2hkc2BJi5mJcpJFP
    WYteLrFnEoVIxXHA
    2hkQbeHn1NntVngR

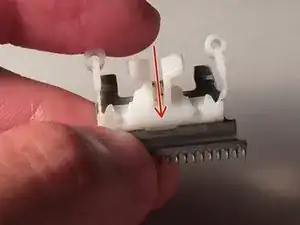

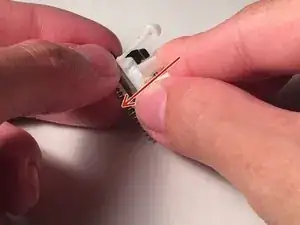

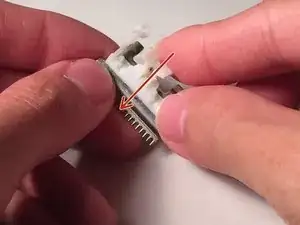

    • Remove the last plastic casing from the front side of the blade.

  6. EkBTWNtNkWvZQ1Z4
    EkBTWNtNkWvZQ1Z4
    VyVnYydTQHLtrqBe

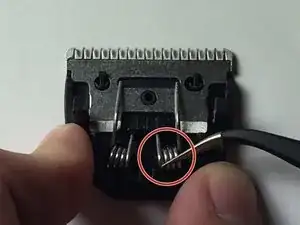

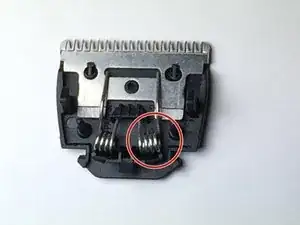

    • Pull the spring off from the base with the tweezers.

  7. fIpaurYtEdpF6mPm

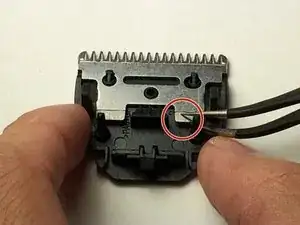

    • Pull the blade apart from the base with the tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Darren Chu

Mitglied seit: 03/09/15

1490 Reputation

10 Kommentare

what about getting it back togeather

andrewv100 -

Sadly it is impossible to put the parts back together. It isnt just as simple as start with the end. Normally i am quite good with fixing stuff. But this time... maybe because mine is broken? A guide for putting it back together should show me where it g9es wrong. But thanks for the guide anyways, thanks for the time you put into it.

Bart Teeuwen -

Now I can't get it back :-(

AbdulJalil -

Buy a new one. It not worth the time and effort unless you're trying to get away from the wife

zorba -

It's easy to get it back.i assembled mine a lot of times... Guys just try

tarangill.zippy -

The only difficult part is the spring... Just pay attention to details and use something to hold the spring from within

tarangill.zippy -

where can i find blade for trimmer ??

technology star -

It's bit tough to re fix it.. however I done it in 15min try without any special tool..

First fix the basic assembly from bottom to top. Finally fix the tension spring with your finger by pushing it on the lock..

Try it once or twice, you can do it..

Ahamed navaz -

Spring is a nightmare.

Michael Johnsey -

Well I could reassemble mine. Just use your common sense to put the parts back together.

pranjal supratim -
