Philips Norelco BeardTrimmer 3100 Front and Back Panels Replacement

Geschrieben von: Darren Chu
  • Kommentare: 2
Philips Norelco BeardTrimmer 3100 Front and Back Panels Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

3 Minuten

Einleitung

In order to access the internal components of the beardtrimmer, the front and back panels must be removed. This guide will instruct you on the process.

  1. ps1N3YWvlwoPCJvo

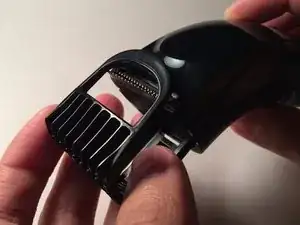

    • Remove the comb from the top of the trimmer.

  2. eWQbEBL2MbNQaiaR
    eWQbEBL2MbNQaiaR
    kbvAaUieps43ysO4

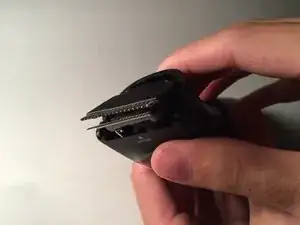

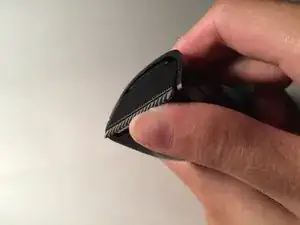

    • Place your thumb underneath the blade and push upward to remove it.

  3. lVGTxMvTcYJPYLAe
    lVGTxMvTcYJPYLAe
    mq6tULvJ6OD4DjgN

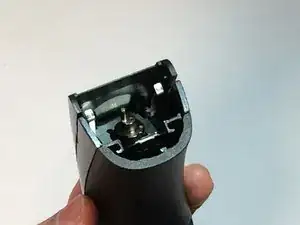

    • Hold trimmer towards you as shown in the diagram.

    • Insert your prying tool/metal spudger into the marked area.

  4. PyQBCnwgBZjlEY6p
    PyQBCnwgBZjlEY6p
    chtavHQsCaY14o3X
    pLwivUBPFMW3mFmp

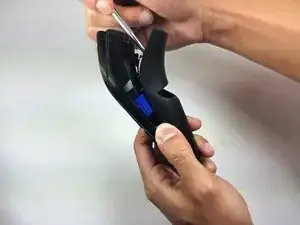

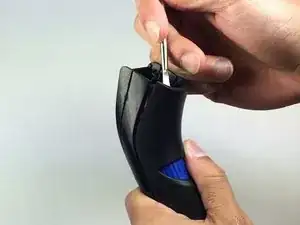

    • Apply gentle pressure and begin prying open the back panel.

    • Separate the panel one notch at a time. Listen carefully as you're prying the panel apart and notice each individual notch release.

    Thank you for this part!

    Direct Heart lines -

  5. MMUXStWQGDTBaKbC
    MMUXStWQGDTBaKbC
    hY5PunLkluK6VEIQ
    JNLcLtJvguk4iQlj

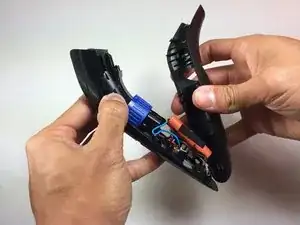

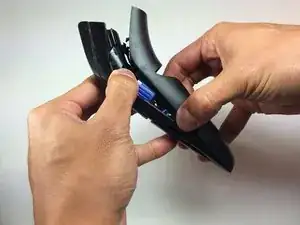

    • Pull the trimmer apart using your hands once the panel is at least halfway apart.

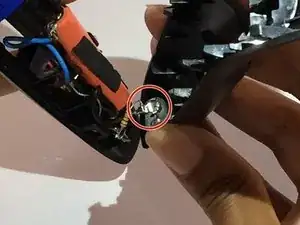

    • Pull the wires attached to the battery off of the power connectors before completely removing the back panel.

  6. MOxZtp6gKieGEJnB
    MOxZtp6gKieGEJnB
    icvoWOSdPOiwnlgD

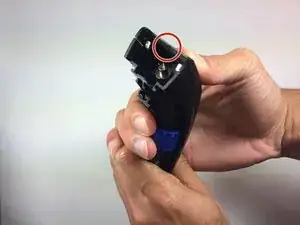

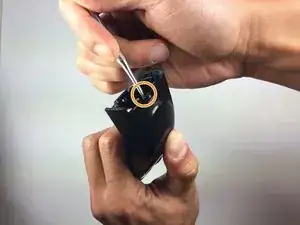

    • Hold the trimmer towards you.

    • Place the metal spudger tool in the marked area.

    Removing this front panel isn’t necessary to replace the battery. This step is a waste of time.

    michaelwmudd -

  7. MYDRKIAt2KXshLhT

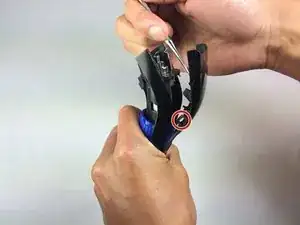

    • Apply gentle pressure and begin prying the front panel.

    • Separate the front panel one notch at a time.

  8. iiU3TiCxTTRNsxJQ
    iiU3TiCxTTRNsxJQ
    HrL2Pxf2C2SAbxeE

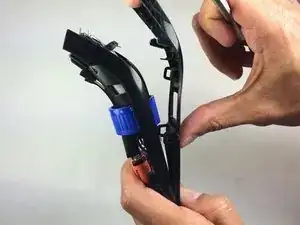

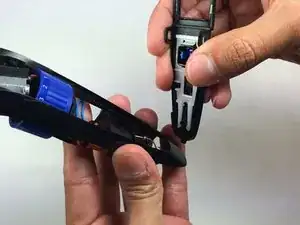

    • Pull the trimmer apart using your hands once the panel is at least halfway apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
