Einleitung

If the beard comb does not move, there may be a problem with the inside of the zoom lock ring, and the zoom lock precision notch may need to be replaced. Follow this guide to replace the zoom lock precision notch.

  1. ps1N3YWvlwoPCJvo
    • Remove the comb from the top of the trimmer.

  2. eWQbEBL2MbNQaiaR
    eWQbEBL2MbNQaiaR
    kbvAaUieps43ysO4
    • Place your thumb underneath the blade and push upward to remove it.

  3. lVGTxMvTcYJPYLAe
    lVGTxMvTcYJPYLAe
    mq6tULvJ6OD4DjgN
    • Hold trimmer towards you as shown in the diagram.

    • Insert your prying tool/metal spudger into the marked area.

  4. PyQBCnwgBZjlEY6p
    PyQBCnwgBZjlEY6p
    chtavHQsCaY14o3X
    pLwivUBPFMW3mFmp
    • Apply gentle pressure and begin prying open the back panel.

    • Separate the panel one notch at a time. Listen carefully as you're prying the panel apart and notice each individual notch release.

    Thank you for this part!

    Direct Heart lines -

  5. MMUXStWQGDTBaKbC
    MMUXStWQGDTBaKbC
    hY5PunLkluK6VEIQ
    JNLcLtJvguk4iQlj
    • Pull the trimmer apart using your hands once the panel is at least halfway apart.

    • Pull the wires attached to the battery off of the power connectors before completely removing the back panel.

  6. MOxZtp6gKieGEJnB
    MOxZtp6gKieGEJnB
    icvoWOSdPOiwnlgD
    • Hold the trimmer towards you.

    • Place the metal spudger tool in the marked area.

    Removing this front panel isn’t necessary to replace the battery. This step is a waste of time.

    michaelwmudd -

  7. MYDRKIAt2KXshLhT
    • Apply gentle pressure and begin prying the front panel.

    • Separate the front panel one notch at a time.

  8. iiU3TiCxTTRNsxJQ
    iiU3TiCxTTRNsxJQ
    HrL2Pxf2C2SAbxeE
    • Pull the trimmer apart using your hands once the panel is at least halfway apart.

  9. VtgaicPkROgNEGqd
    • Locate the zoom lock precision notch in the back panel of the Beardtrimmer

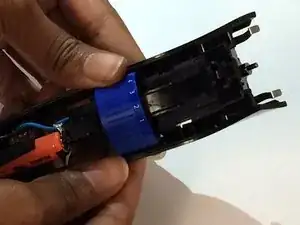

  10. f6l3BKv1hQm56ZTy
    • Set the zoom lock wheel to the lowest setting

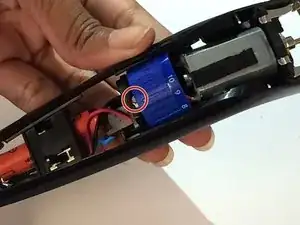

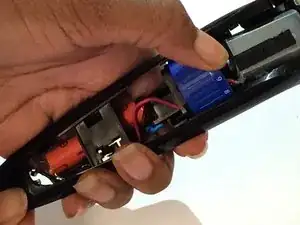

  11. q1QjYBMOVdabNomZ
    q1QjYBMOVdabNomZ
    rgHWCQ1GChaKhR6p
    • Rotate the trimmer so that the motor is facing you.

    • Now gently push down the zoom lock wheel until the white button is not showing.

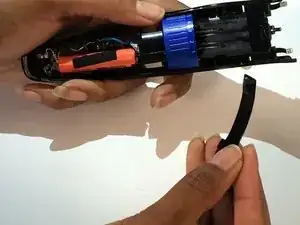

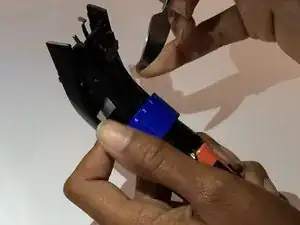

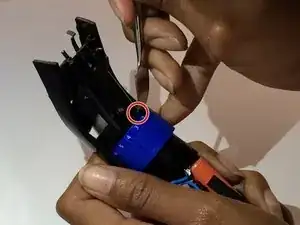

  12. MBFuLUs6cKMmD5Ll
    MBFuLUs6cKMmD5Ll
    Tbqd54aQliQuidhI
    qhVXs4HOiBVODKMB
    • Rotate the beardtrimmer again so that the battery is facing you.

    • With the help of the metal spudger, apply gentle pressure on top of the wheel to remove the zoom lock precision notch .

Abschluss

To reassemble your device, follow these instructions in reverse order.
