Philips Norelco OneBlade Servo Motor Replacement

Geschrieben von: Joshua Etchberger
  • Kommentare: 11
Philips Norelco OneBlade Servo Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. D1HlRjgREg6OuIyI
    D1HlRjgREg6OuIyI
    DqYM1tByXZ2AWEOI
    q3EoGdgLweC5wqSE

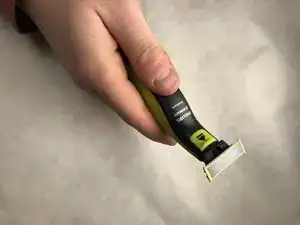

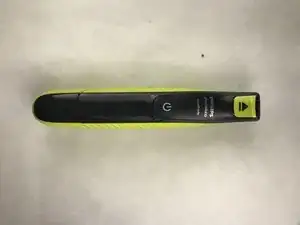

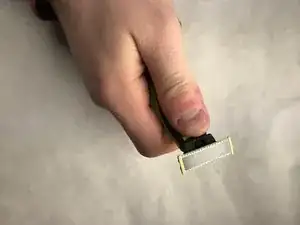

    • Ensure razor is off and razor blade has been removed.

  2. jdnRuKUvhu3wumqN
    jdnRuKUvhu3wumqN
    1NwSBBySAqFNenXW

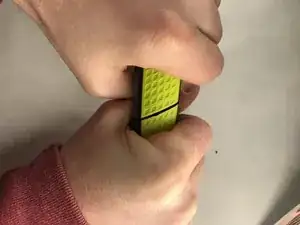

    • Locate crease in bottom third of razor.

    • Hold razor in both hands, and place thumbs near crease.

    • Slightly bend the razor near crease.

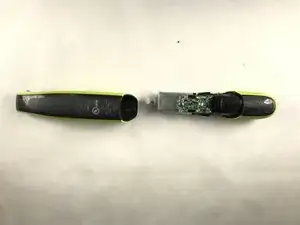

    • Pull casing apart.

    • Device may turn on upon removal. Turn off razor before continuing.

    The case won't pull off like you describe…am i missing something?

    Thomas Papadakos -

    No the thing is literally hello together by something that defies the laws of physics. I have two that stopped charging at exactly the same time. New charges did not help so I tried pulling them apart like drained above and ended up breaking the stupid thing. I refuse to try again work the 2nd

    Phillip Collins -

  3. TyXrDsFPgfJwUBVq
    TyXrDsFPgfJwUBVq
    WYC5CyHiOiwyMQ3Q
    L2IGrC6DJH3PL1al

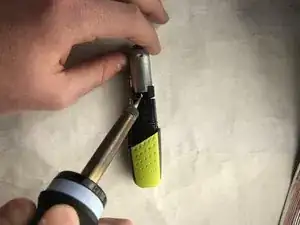

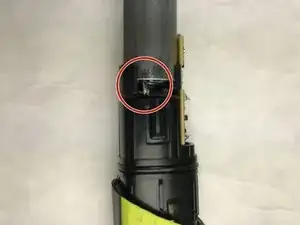

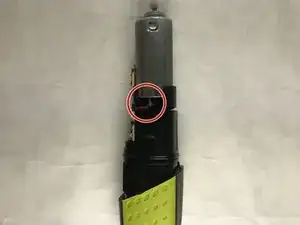

    • Locate wires below motor on either side of circuit board.

    • Remove solder from each joint using solder removal kit.

    • Do not attempt to remove wires by force.

  4. IM22wPhKKsMZ6D2i

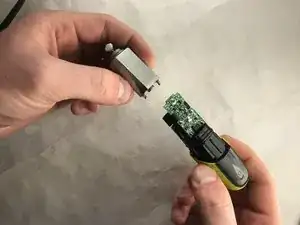

    • Remove new motor from package and place in position.

    • Motor should sit above circuit board with connection prongs facing downward. Additionally, center extrusion on bottom of motor should sit in provided hole.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Please dispose of servo motor properly. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com

Tinte & Feder

Joshua Etchberger

Mitglied seit: 07/11/17

472 Reputation

9 Kommentare

does removing the motor exposing the battery? In my unit I see some green thing underneath the motor, looks like a AA battery, can you confirm?

or is it from somewhere else? (I need to replace my battery)

Yarden Cohen -

I just dismantled my shaver, and it has a 1.2v AA size NiMH battery (suppo hsy aa1200).

João Paulo Gomes -

I’m also curious about the battery. Any one have pictures of it or know what kind of battery it has inside?

James Almeida -

I just dismantled my shaver, and it has a 1.2v AA size NiMH battery (suppo hsy aa1200)

João Paulo Gomes -

Thanks! This definitely helps.

James Almeida -

I see that too, but how did you get the battery out? I haven’t unsoldered the motor yet, but I don’t see how that would help get it out…

Jeff Blum -

What was the reason for replacing the engine?

What are the brushes installed in the engine?

Alex -

I just torn apart mine to replace the battery. I was expecting a 18650 but it is just your standard 1.2v rechargeable battery. I replaced it with a lithium ion battery and everything is good as new. They did make it a bit more difficult by adding a lot of double sided tape to the battery. Next time I might try modding it with a 18650. We’ll see…

Boxiest Trustee -

I am having great difficulty in pulling apart the casing. Is there any recommendation or tips in how to do it? I have tried following the manual and here.

Javier Ismael Ramírez Urízar -
