This guide is for the Philips Respironics V200 / Espirit Ventilator, Part Number 580-1000-02 H. The oxygen flow accuracy test verifies the accuracy of the oxygen flow sensor and function of the oxygen valve. Information in this guide was sourced from the Service Manual (linked in each step) in chapter 8.5.4 on pages 8-19 and 8-20.
-
-
If the ventilator is not already in diagnostic mode, simultaneously press the ALARM RESET and 100% O2 keys on the front panel for approximately five seconds while turning ventilator power on, then touch OK to enter diagnostic mode. (Service Manual 8-19)
-
-
-

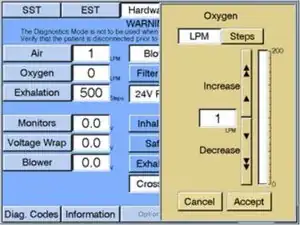

Touch Oxygen on the Hardware screen and set the flow to 1 LPM. Verify that the O2Position display reads from 185 to 525 steps. (Service Manual 8-19)
-
-
-

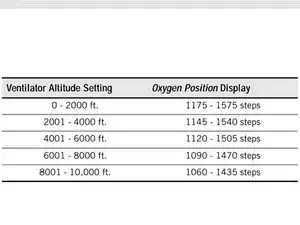

Touch Oxygen and set the flow to 180 LPM. Check that the O2 Position display corresponds to the set altitude: (Service Manual 8-19)
-
-
-

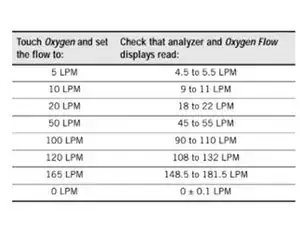

Set the analyzer’s function to read LPM mode and gas select to O2 (set a high flow range capable of measuring 180 LPM oxygen). (Service Manual 8-19)
-
To reassemble your device, follow these instructions in reverse order.
