Einleitung
An 8-mm socket wrench with extension is required. For more information on replacing the oxygen valve, please refer to page 9-74 of the service manual.
Werkzeuge
-
-
Before replacing the oxygen valve assembly:
-
You must install the oxygen regulator assembly before reinstalling the oxygen valve assembly
-
When reinstalling the oxygen valve, make sure the oxygen regulator and oxygen flow sensor are fully installed to the oxygen valve assembly
-
Always inspect the O-rings between interconnecting parts, and replace them if they are visibly damaged or rough to the touch.
-
Always use new O-rings supplied with replacement parts
-
Lightly lubricate O-rings with Krytox GPL226 lubricant when installing, and relubricate at every reinstallation
-
-
-

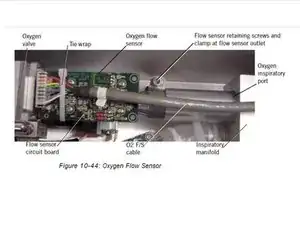

Remove the oxygen flow sensor
-
(Instructions found in Chapter 10.26 of the Respironics V200/Esprit Ventilator Service Manual.)
-
Careful! Do not cut the tie wrap or disconnect the O2 F/S cable from the flow sensor.
-
-
-
Remove the air flow sensor
-
(Instructions found in Chapter 10.27 of the Respironics V200/Esprit Ventilator Service Manual.)
-
Careful! Do not cut the tie wrap or disconnect the AIR F/S cable from the flow sensor.
-
-
-

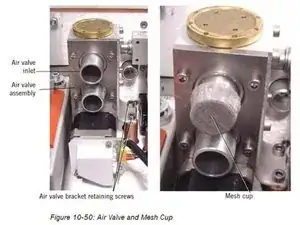

Remove the air valve assembly
-
(Instructions found in Chapter 10.30 of the Respironics V200/Esprit Ventilator Service Manual.)
-
-
-
Using a 8-mm socket with extension, remove the three bolts that hold the oxygen valve bracket
-
To reassemble your device, follow these instructions in reverse order.
