The capacitor is the cylindrical shaped protruding object located on the circuit board. This guide will detail the instructions on how to replace the capacitor.

  1. Mv6CbqHyVZyH5ZA4
    • Remove the back cover by sliding it off.

    • Remove the 3 AAA batteries.

  2. RjhtAVeiEmtsVJqO
    RjhtAVeiEmtsVJqO
    vT2LikTslMfCtgfi
    VHRmHJ1nnpxtWIAM
    • Unscrew the nine exterior screws on the back panel using a PH0-size Philips-head screwdriver.

    • NOTE: A larger screwdriver head and more force may be required for damaged screws.

    • Remove the triangular end piece by pulling it straight off.

  3. VCqXth1ITP22cuIB
    VCqXth1ITP22cuIB
    1OxDfRRXIuTFnA3y
    • Remove the colored grill by sliding it off in the direction of the removed end piece.

    • Pry off the back battery panel with the plastic opening tool.

    • NOTE: Be careful to avoid tearing any wires.

  4. EJpXlHp4rYotVVIe

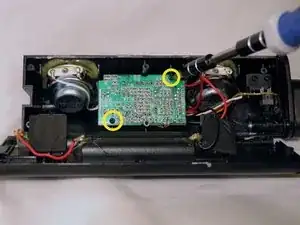

    • Remove the two screws on opposite ends of the circuit board with the PH0 size philips head screw driver.

    • Slowly pull the circuit board out of the device

    • NOTE: Be careful not to damage any of the wires protruding from the back of the circuit board.

  5. 4QObDUlDlarVn32w
    4QObDUlDlarVn32w
    x2yqdhDAZN26SXye

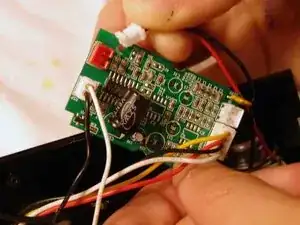

    • Flip the device and remove the battery plug from the circuit board by pulling out the plugs to fully remove back panel.

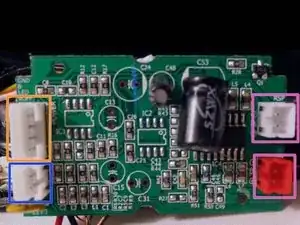

    • Remove the speaker plugs from the circuit board by pulling out the plugs. They are located on opposite sides of the circuit board.

    • NOTE: When reassembling, note that the speaker with the red wire goes to the red plug, and the speaker with the white wire goes to the adjacent white plug.

    • Remove the light plug from the circuit board.

    • NOTE: This plug is twice as wide as the speaker and battery plugs.

  6. mPtaoMxEAVYDZuW1
    mPtaoMxEAVYDZuW1
    CkZGQZODZTlfM5AB

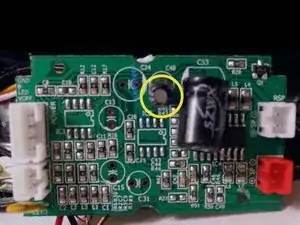

    • Locate the capacitor and carefully slide it out of the circuit board.

    • NOTE: The capacitor will be a cylindrical object protruding vertically near the center of the circuit board.

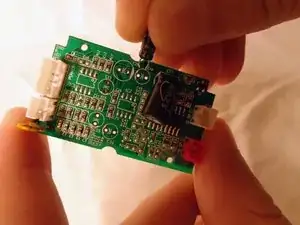

    • Slide the prongs of the replacement capacitor into the two holes of the circuit board where the original capacitor was removed from.

    • Reassemble the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
