Philips SBA1060 Circuit Board Replacement

Geschrieben von: April Driscoll
  • Kommentare: 2
Philips SBA1060 Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

The circuit board is the large, flat, green rectangle in the middle of the device. This guide will detail the steps in how to replace the circuit board.

  1. Mv6CbqHyVZyH5ZA4

    • Remove the back cover by sliding it off.

    • Remove the 3 AAA batteries.

  2. RjhtAVeiEmtsVJqO
    RjhtAVeiEmtsVJqO
    vT2LikTslMfCtgfi
    VHRmHJ1nnpxtWIAM

    • Unscrew the nine exterior screws on the back panel using a PH0-size Philips-head screwdriver.

    • NOTE: A larger screwdriver head and more force may be required for damaged screws.

    • Remove the triangular end piece by pulling it straight off.

  3. VCqXth1ITP22cuIB
    VCqXth1ITP22cuIB
    1OxDfRRXIuTFnA3y

    • Remove the colored grill by sliding it off in the direction of the removed end piece.

    • Pry off the back battery panel with the plastic opening tool.

    • NOTE: Be careful to avoid tearing any wires.

  4. RPsN6Wnkbx1O2QBb

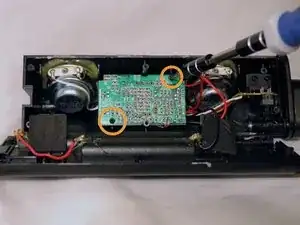

    • Remove the two screws on opposite ends of the circuit board with the PH0 size philips head screw driver.

    • Remove the damaged circuit board from the device.

  5. shcSQ2dZcwaUlHhp
    shcSQ2dZcwaUlHhp
    as2dcRuheBYK6Xg1

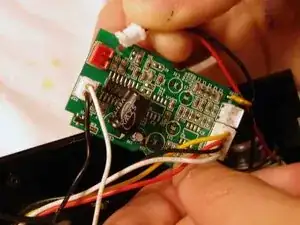

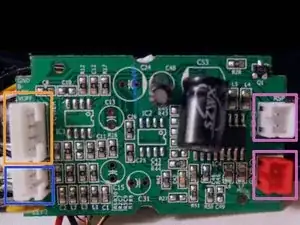

    • Remove the battery plug from the circuit board by pulling out the plugs to fully remove back panel.

    • Remove the speaker plugs from the circuit board by pulling out the plugs. They are located on opposite sides of the circuit board.

    • NOTE: When reassembling, note that the speaker with the red wire goes to the red plug, and the speaker with the white wire goes to the adjacent white plug.

    • Remove the light plug from the circuit board.

    • NOTE: This plug is twice as wide as the speaker and battery plugs.

    • Reassemble the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
