Einleitung
The speakers are the two circular objects inside the device. This guide will detail the steps in how to replace a damaged speaker.
Werkzeuge
Ersatzteile
-

                  -
            Unscrew the nine exterior screws on the back panel using a PH0-size Philips-head screwdriver.
-
            NOTE: A larger screwdriver head and more force may be required for damaged screws.
-
            Remove the triangular end piece by pulling it straight off.

-

-

                  -
            Remove the colored grill by sliding it off in the direction of the removed end piece.
-
            Pry off the back battery panel with the plastic opening tool.
-
            NOTE: Be careful to avoid tearing any wires.

-

-

                  -
            Remove the circuit board by unscrewing the two interior screws located on the circuit board.
-
            Pull out the battery plugs from the circuit board by pulling out the plugs to fully remove the back panel from the rest of the speaker.

-

-

                  -

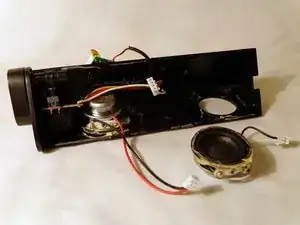

            Locate the speaker needing replacing.
-
            Remove the one screw holding the speaker in place with a PH0 size philips head screw driver.

-

-

                  -
            Score the glue that is holding the speaker in place with the spudger, and use your hands to pry off the speaker.

-

-

                  -
            Using a non-conductive glue, carefully seal the speaker to the casing.
-
            Follow the glue instructions as set by the manufacturers. Let the glue set the appropriate amount of time.
-
            Reassemble the device

-

To reassemble your device, follow these instructions in reverse order.
