Philips Sonicare DiamondClean Spring Replacement

Geschrieben von: Caleb Watson
  • Kommentare: 0
Philips Sonicare DiamondClean Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

Werkzeuge

  1. H4ug4rPSVMNM3kjH

    • Pull the toothbrush head off the toothbrush.

  2. q1kqPOde5RSgNp5p

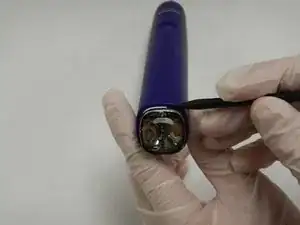

    • Use a spudger to pry the chrome cap from the base of the toothbrush.

  3. 2XfWZeXRuHbrhCGb
    2XfWZeXRuHbrhCGb
    G4GmRNKjyfddTn5Z
    SIGO3CMQfpXbYfn2

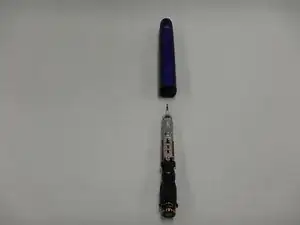

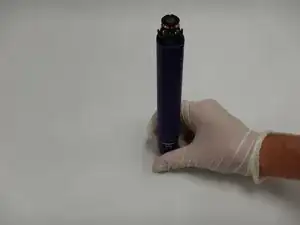

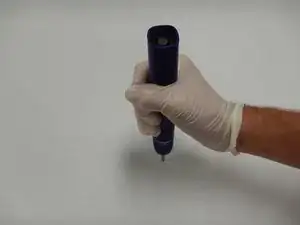

    • Invert the toothbrush and apply pressure against the metal tip until the internals and casing separate.

    • Remove the internals from the casing.

  4. dXwKhtfwfVCxYwHK

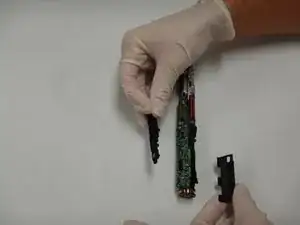

    • Remove the rubbers covers from the circuit board and battery.

  5. jdUpaeBQSWkaPnIn
    jdUpaeBQSWkaPnIn
    Vi3YJUcJi4hPSeEk

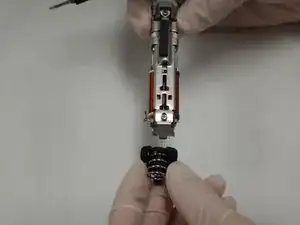

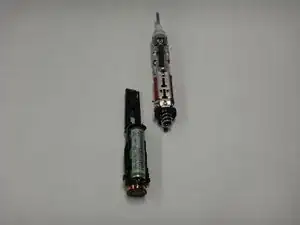

    • Separate the upper and lower components by sliding the circuit board section and motor section away from each other.

    • Remove the spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
