Philips TAS7505 Battery Replacement

Geschrieben von: Frederick Jimenez

Kommentare: 5

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

This is a guide to show how to remove/replace the battery in your Philips TAS7505 Speaker. Caution, in order to remove the battery from the Philips TAS7505, you will need to remove the outer features of the speaker that may not re-attachable. If you don't that your speaker does look as it once was and only cares about it actually working properly, then this will be no problem for you.

Werkzeuge

Ersatzteile

JBL Charge 4 Replacement Battery

Schritt 1

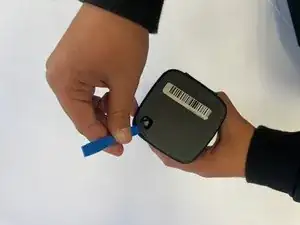

Remove the rubber cover from the bottom of the speaker using your opening tool.
However, this will make it much harder to place the rubber cover back where it was and may not stick, but it is unnecessary for the speaker to function.

Schritt 2

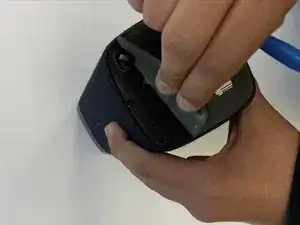

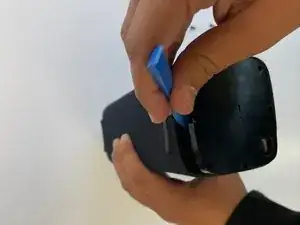

Get your Philips 0 bit screwdriver and remove the 4 screws attached to the cover and then remove the cover with the opening tool that you used for the rubber cover.

add the screw removing picture.

Christopher Gonzalez -

circle the screws that need to be removed.

Christopher Gonzalez -

Schritt 3

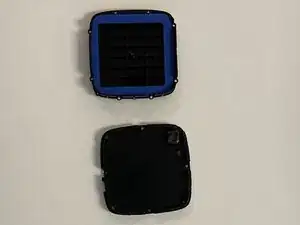

Remove all the screws using the same screwdriver to remove the final layers to open up the inside.

what are the screws being removed from?

Christopher Gonzalez -

also add the device with the battery inside along with the pieces removed.

Christopher Gonzalez -

Schritt 4

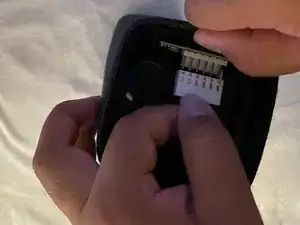

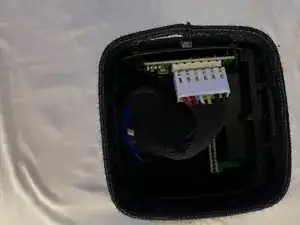

After opening the Philips speaker, remove the battery from the motherboard.
The cable that connects the battery to the speaker is attached to small pins. You can use your hands to wiggle the battery out.
