Phone Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This guide requires basic disassembly skills to get inside the phone. Allowing you to pull out and then realign the buttons.

  1. SjZMlxCyixboNoVD
    SjZMlxCyixboNoVD
    ucywvZAXIkJAxPLw

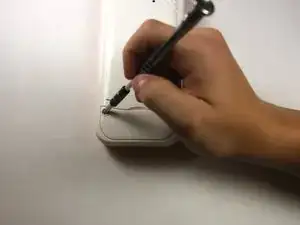

    • Using a Phillips #1 screwdriver, remove the 4.8mm screw on the battery cover by twisting the screwdriver counter-clockwise.

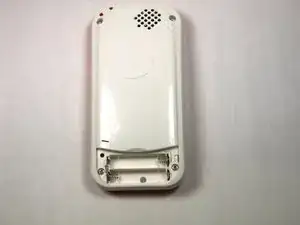

  2. wo2xkvAdDJLfSyDW
    wo2xkvAdDJLfSyDW
    CnhSpTYYoFEhKThA
    GWOSB42VDBClBBMX

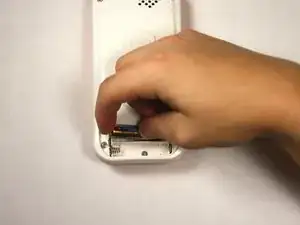

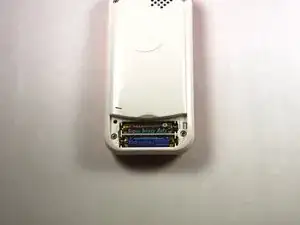

    • Remove the two AAA batteries by pulling on one end of the battery and lifting it straight out.

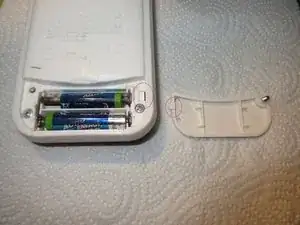

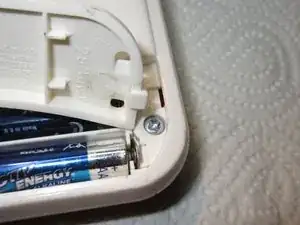

  3. ekBeMOhR6Xk2F3HJ
    ekBeMOhR6Xk2F3HJ
    iL4ccf1eudbvOlNr
    SoAYYZfqt3k15tiG

    • When reassembling, align the notch on the battery panel with the slot on the phone.

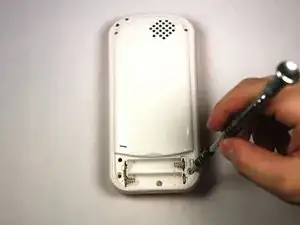

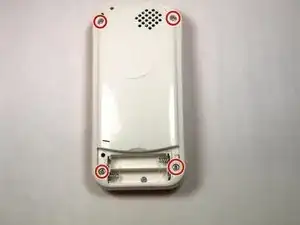

  4. VHyJYLkaB3Wjplet
    VHyJYLkaB3Wjplet
    ZqYl3CLnCgOPGhDE

    • Remove 4 13.8mm screws holding the device back using a Phillips #1 screw driver.

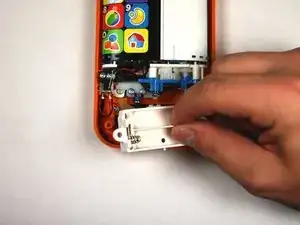

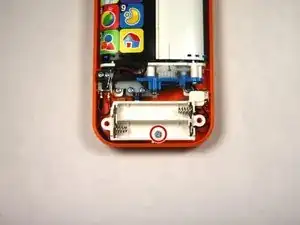

  5. SGjCOTGrmk2idV66
    SGjCOTGrmk2idV66
    lLqsxfqivUVIMJvC
    1Wm4f6DUUvQPIleE

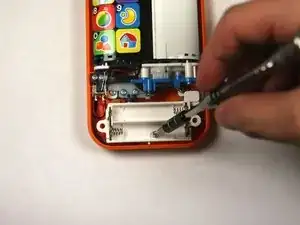

    • Removed 1 4.8mm phillips head screw with a #0 Phillips head screw driver and lift away battery back being conscientious of wires.

  6. Sw1TTrbQQ52XLVOX
    Sw1TTrbQQ52XLVOX
    KFBXfxIuraSZEub2

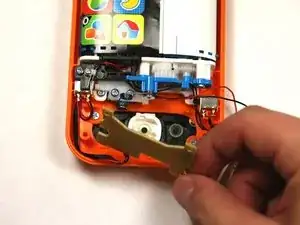

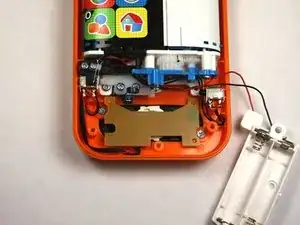

    • Carefully remove the button board to gain access to the buttons.

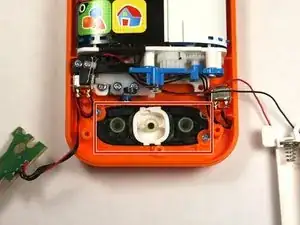

  7. mnFtEJ2FKkEHAOZu
    mnFtEJ2FKkEHAOZu
    jtOoklQ3t1Rsdf6O

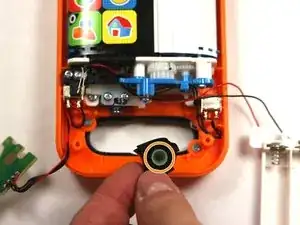

    • Carefully remove each button from the baby phone.

    • When handling buttons be sure not to misplace the button contacts.

Abschluss

To reassemble your device, follow these instructions in reverse order.
