Photive Artisan Portable Bluetooth Speaker Battery Pack Replacement

Geschrieben von: David Lennon
  • Kommentare: 3
Photive Artisan Portable Bluetooth Speaker Battery Pack Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the battery.

  1. DqROGVTR3ndYnYQW

    • Before continuing, be sure your device is powered off.

    • Remove two 9mm Phillips #0 head screws from the bottom side of the speaker.

  2. Ar6k2scJSHm43Nie

    • Peel back the rubber feet from either side of the base.

  3. ATLgVcgFJoV5Pejy

    • Remove four 9mm Phillips #0 head screws from the bottom of the speaker.

  4. SRZ6UCHTDa12TCDB

    • Separate the base of the speaker from the upper housing.

  5. PdZOMssvgUvJN3eu

    • Remove four 9mm Phillips #0 head screws from the inside of the speaker case.

  6. UVYVvxpxUVrkIFKT
    UVYVvxpxUVrkIFKT
    O2KJcUa2GMICwngL
    xBUNPPyYuwigm5jH

    • Remove all cable connectors from the speaker motherboard.

    Emerson speaker Battery pack size

    Dion -

  7. DxBeRwF6xZ4mLhCX

    • Remove two 9mm Phillips head #0 screws from the battery holder.

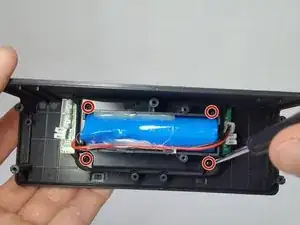

  8. lxIrMcaK6dLtuc4S

    • Remove four 9mm Phillips #0 head screws holding the battery pack in place.

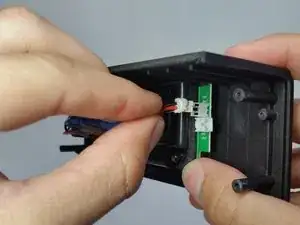

  9. kGtgydIup3Igm2LZ

    • Disconnect the battery cable from the motherboard.

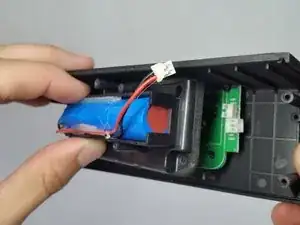

  10. mvnMEjnurgsQNDdQ

    • Lift the battery pack from the board.

    What is the battery spec? Do you know if there is a larger/more durable one to replace it with?

    Todd Slaymaker -

Abschluss

To reassemble your device, follow these instructions in reverse order.
