Use this guide to replace the front light in your speaker.

  1. DqROGVTR3ndYnYQW

    • Before continuing, be sure your device is powered off.

    • Remove two 9mm Phillips #0 head screws from the bottom side of the speaker.

  2. Ar6k2scJSHm43Nie

    • Peel back the rubber feet from either side of the base.

  3. ATLgVcgFJoV5Pejy

    • Remove four 9mm Phillips #0 head screws from the bottom of the speaker.

  4. SRZ6UCHTDa12TCDB

    • Separate the base of the speaker from the upper housing.

  5. PdZOMssvgUvJN3eu

    • Remove four 9mm Phillips #0 head screws from the inside of the speaker case.

  6. UVYVvxpxUVrkIFKT
    UVYVvxpxUVrkIFKT
    O2KJcUa2GMICwngL
    xBUNPPyYuwigm5jH

    • Remove all cable connectors from the speaker motherboard.

    Emerson speaker Battery pack size

    Dion -

  7. Qr6Mxeb4lfFVstWA

    • Remove four Phillips #0 head screws from the front panel.

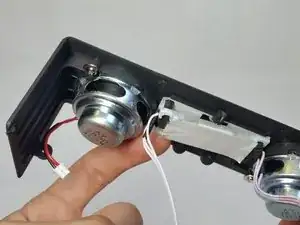

  8. lR1yMhVnDwR2wflg

    • Using the tip of your finger, gently separate the front panel display from its mount.

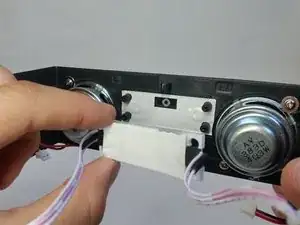

  9. DyMcf6UPIJPWMUgO

    • Remove the front panel display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
