Einleitung
This guide will show you how to remove and replace a dead battery.
-
-
Unscrew all twelve Hex Head 1.5 (Length-3/8", Head- 1/8") screws using a 1.5mm hex screwdriver.
-
-
-
Remove the rubber casing by using your fingers to pull off. Be sure not tear or rip rubber casing.
-
-
-
Flip the device upside down and remove all eight Phillips (Length-3/8", Head-1/8") Screws using a standard #1 Phillips screwdriver.
-
-
-
Use plastic opening tool to pry off back plate.
-
Move the plastic opening tool along the the device to further pry open the device.
-
-
-
Identify the two Phillips (Length-5/16", Head-1/8") screws holding the battery in place and remove them using a #1 screwdriver.
-
-
-
Remove the ICR18650-26M battery from its position by pulling upwards and out of the casing.
-
-
-

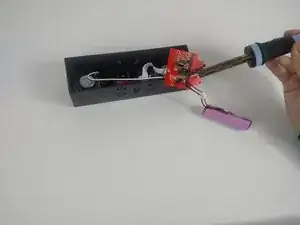

In this step you will perform the soldering to remove the positive(red) and negative(black) wires).
-
-
-

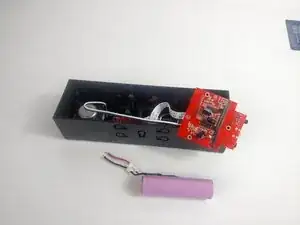

Once the solder is removed your battery is now removed and can be replaced with the new battery.
-
To reassemble your device, follow these instructions in reverse order.
