Pine64 PinePhone Volume Buttons Replacement

Geschrieben von: Anthony Neil Hopkins
  • Kommentare: 0
Pine64 PinePhone Volume Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

Werkzeuge

  1. OT6AGHAgfmI1SICR
    OT6AGHAgfmI1SICR
    vck2x2eq6OIjbHkG

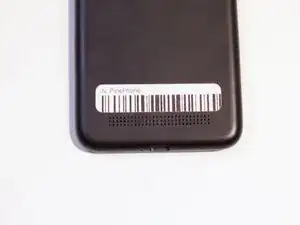

    • Place the device face down on a non-scratch surface.

  2. AEZWnkTmEDqeC5Bt

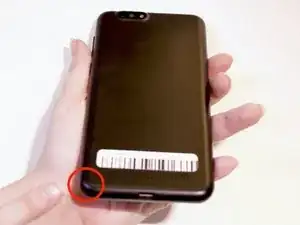

    • Using a fingernail pry open the back cover off with the bottom left indent.

  3. UAjYfZCDEyO6AJxZ

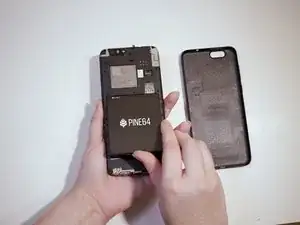

    • Using a fingernail, press into the bottom divot and remove the battery from the phone.

  4. IeDRltne5ZyvyFol

    • Use a spudger or plastic opening tool to pry off the plastic cover.

  5. pKwUjQiTgutlLYUc

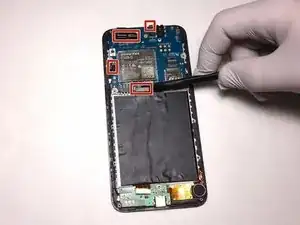

    • Use a spudger to lift the ZIF tabs and press-fit connectors free.

  6. CNpPLbcBBIWXrSf1

    • Use a spudger to lift the motherboard up and remove it from the device.

  7. CUW2XUAb51XKyEnA

    • Use a spudger to gently pry the volume button off of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
