Pioneer R1 LCD Display Replacement

Geschrieben von: Christopher Rosario
  • Kommentare: 0
Pioneer R1 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will walk you through the process of accessing and replacing your R1's LCD display.

  1. xlD3ZBiVUDlwv6Em

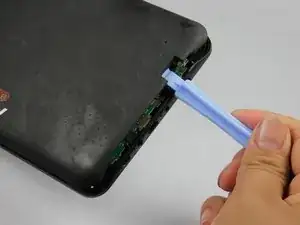

    • Insert your plastic spudger in the opening near the HDMI port.

    • Gently pry the back cover of the R1 from the the front by using the spudger along the edges.

    • Do not pull the back cover straight off the R1 as components of the speakers will be attached to both sides.

  2. UdLKSWHZbefl2ZJO

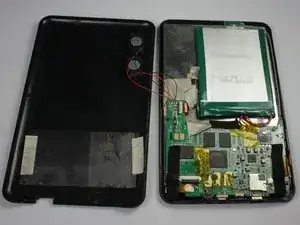

    • Lay the R1 flat like an open book.

    • This will prevent the speakers from becoming disconnected from the motherboard.

  3. KLLGMlatJ1yAYqUJ

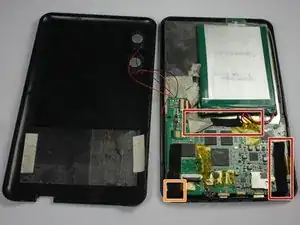

    • Remove the tape that is holding the motherboard to the display and covering the cable attachments.

    • Peel back just the end of this tape to free the front facing camera.

  4. XvmnU6GZvVBFgoMH

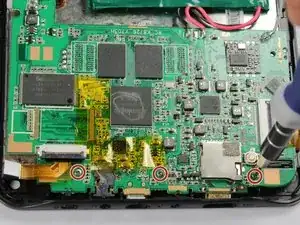

    • Remove the three 4 mm screws along the base of the motherboard with a Phillips #00 Screwdriver.

  5. UfmxxZOpBTSVA6fk

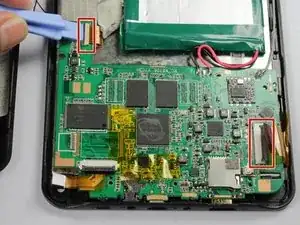

    • Disengage the two cable locks using your spudger or your finger nail.

    • Slide the cable free from the disengaged lock.

    • Do not pull across the cables as this may tear and permanently damage it.

  6. VQX6cWL3L1KMtFIJ
    VQX6cWL3L1KMtFIJ
    muR3U6HpJfWDCUEx

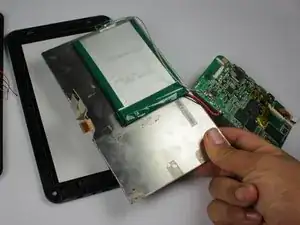

    • Insert your spudger between the LCD display and the touch screen.

    • Gently pry the LCD display from the the touchscreen by using the spudger along the edges.

    • Once disengaged, remove the LCD display from the touchscreen.

  7. 3ZDXb6YiXB1T2X22

    • Slide a strong thin object, like a thin spudger, between the battery and the display.

    • Slide the object along the length of the battery to remove it from the display.

    • The adhesive holding the battery in place is strong and the battery is quite soft. Take care not to break open the battery.

  8. CHqfCBqBwUFaLjUY

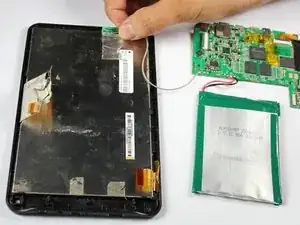

    • Carefully pry off the component that is taped to the LCD display at the top of the R1.

Abschluss

To reassemble your device, follow these instructions in reverse order.
