Pioneer R1 Touch Screen Replacement

Geschrieben von: Christopher Rosario
  • Kommentare: 0
Pioneer R1 Touch Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will walk you through the process of accessing and replacing your R1's touch screen/digitizer.

  1. 4u2ckNtRZHsExvSW

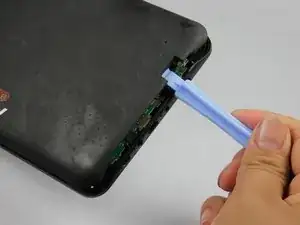

    • Insert your plastic spudger in the opening near the HDMI port.

    • Gently pry the back cover of the R1 from the the front by using the spudger along the edges.

    • Do not pull the back cover straight off the R1 as components of the speakers will be attached to both sides.

  2. FSetQfjZGfPkPEg4

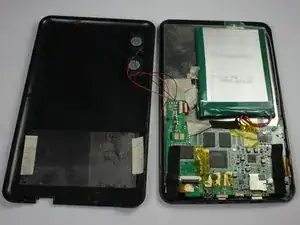

    • Lay the R1 flat like an open book.

    • This will prevent the speakers from becoming disconnected from the motherboard.

  3. BapMAUj2mL4L3h2o

    • Remove the tape that is holding the motherboard to the display and covering the cable attachments.

    • Peel back just the end of this tape to free the front facing camera.

  4. 4aww2jHhIFLsjtPk

    • Remove the three 4 mm screws along the base of the motherboard with a Phillips #00 Screwdriver.

  5. nbBpt5VbM4UnS43d

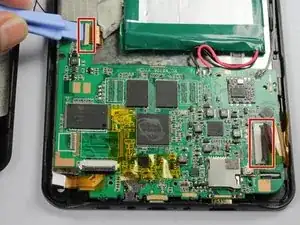

    • Disengage the two cable locks using your spudger or your finger nail.

    • Slide the cable free from the disengaged lock.

    • Do not pull across the cables as this may tear and permanently damage it.

  6. AZwBHWgSYPBMMGJV
    AZwBHWgSYPBMMGJV
    c1ZGT4nwxUSSwGy3

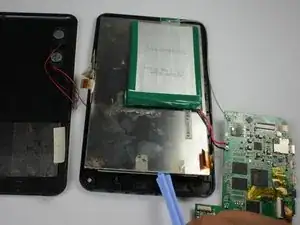

    • Insert your spudger between the LCD display and the touch screen.

    • Gently pry the LCD display from the the touchscreen by using the spudger along the edges.

  7. RACXKn5rlnk22iXK

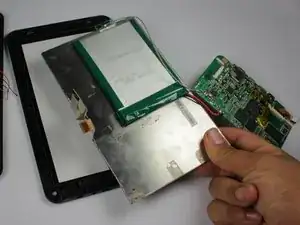

    • Once disengaged, remove the LCD display from the touchscreen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
