Einleitung

This guide will show you the steps to remove the headband.

  1. HPEfWZJn4UFMsKSc
    HPEfWZJn4UFMsKSc
    cxfm3WgPNMphbrfj

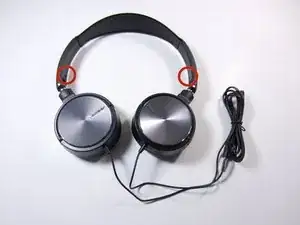

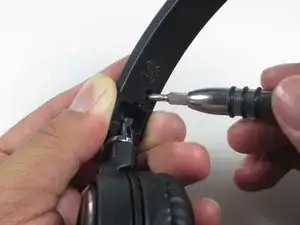

    • Remove the two screws on the underside of the headband with the PH0 Phillips screw driver.

  2. WREcyAiiViIumORs
    WREcyAiiViIumORs
    g3GKEOVWQuEBUDX5

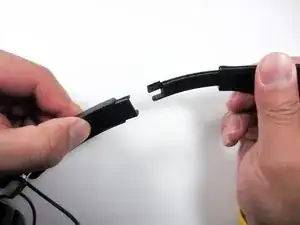

    • With the headband fully extended, hold the base of the headband with one hand and with your other hand, hold the top of the headband.

    • With force, pull upwards.

  3. DUg26stbBPfdCBcq
    DUg26stbBPfdCBcq
    c4NPGbkv4BoGuLCx
    Bbhc2xanBubuxRXV

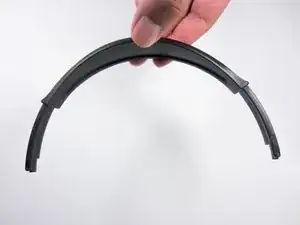

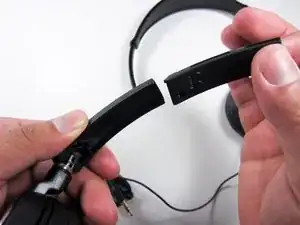

    • Remove the rail-piece that is now sticking up by pulling it up and out of the headphone.

    • Repeat on the opposite side and the headband will be released.

    • During reassembly, make the sure the rail-pieces match their respective sides so the headband reinserts properly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
