Planet Eclipse Etha Battery and Grip Panels Replacement

Geschrieben von: Jared Olson
  • Kommentare: 0
Planet Eclipse Etha Battery and Grip Panels Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Removing the grip panels allows you to change the battery and allows you to remove the frame, which gives access to more parts of the marker.

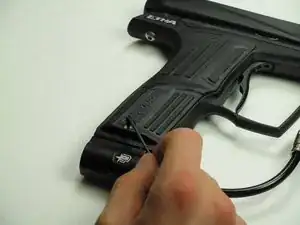

  1. 1JSogHlfG3SxSp2m
    1JSogHlfG3SxSp2m

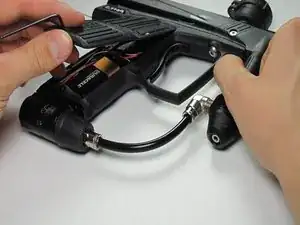

    RSBS3APWrOFIJH4G

    • Use the 5/64" hex key to remove the screw shown.

    • Remove the grip panel by gently holding the bottom of the panel and lifting the panel off.

    • If you are only replacing the battery, skip the next step.

    • The screws in this guide are interchangeable with those shown in the Eyes replacement guide.

  2. MEh5fIhKYfEFBcgG

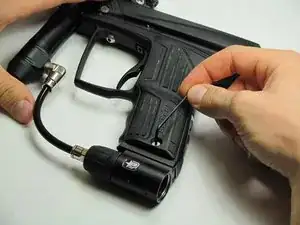

    • Flip the marker over and use the 5/64" hex key to remove the screw shown.

    • Remove the grip panel by gently holding the bottom of the panel and lifting the panel off.

  3. KWQVQTreo4ssb66O

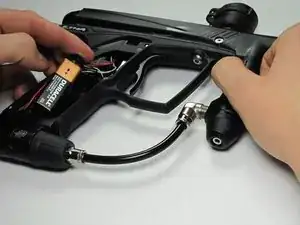

    KWQVQTreo4ssb66O

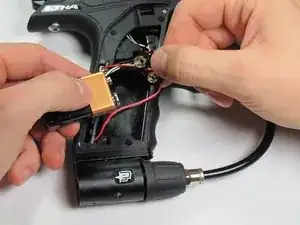

    aFI3SbyaStbcV1N1

    • Carefully remove the 9V battery and connector.

    • Remove the 9V battery from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
