Planet Eclipse Etha Solenoid Replacement

Geschrieben von: Austin Eslinger
  • Kommentare: 3
Planet Eclipse Etha Solenoid Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 25 Minuten

Einleitung

The solenoid valve is critical to operation and if it breaks or becomes unreliable, the marker will not function. This guide shows how to replace the solenoid in the event of failure.

  1. QvLOHLJIAH5XlTEZ
    QvLOHLJIAH5XlTEZ
    DrD1SKAvATXJUgUu

    • Firmly grasp hold of the ring on the bottom of the 90 degree silver fitting on the front of the gun.

    • Pull hard, but slowly, on the macroline where it comes out of silver piece until it comes out.

    • The macroline is the black hose connecting the regulator to the tank connection.

  2. FitNL3bbisp2IU2J
    FitNL3bbisp2IU2J
    GrJ4VXevnegCV2oX

    • Remove the regulator by unscrewing it in a clockwise direction.

  3. 1JSogHlfG3SxSp2m
    1JSogHlfG3SxSp2m
    RSBS3APWrOFIJH4G

    • Use the 5/64" hex key to remove the screw shown.

    • Remove the grip panel by gently holding the bottom of the panel and lifting the panel off.

    • If you are only replacing the battery, skip the next step.

    • The screws in this guide are interchangeable with those shown in the Eyes replacement guide.

  4. MEh5fIhKYfEFBcgG

    • Flip the marker over and use the 5/64" hex key to remove the screw shown.

    • Remove the grip panel by gently holding the bottom of the panel and lifting the panel off.

  5. KWQVQTreo4ssb66O
    KWQVQTreo4ssb66O
    aFI3SbyaStbcV1N1

    • Carefully remove the 9V battery and connector.

    • Remove the 9V battery from the connector.

  6. vQVNAAusXGig3QcK
    vQVNAAusXGig3QcK
    XKaMV4ctNRBnIuvB

    • Carefully disconnect the three connectors from the circuit board.

    • Don't worry about remembering which direction the connectors go in, they will not fit in the board in the wrong direction.

  7. hwONI2XmYupEUu3p
    hwONI2XmYupEUu3p
    SPEB3lJnye4rbHJo

    • Use the 1/8" hex key to remove the two dome-headed screws by rotating them counter-clockwise.

  8. 2YCyh5BKeL5MmZMG

    • Be very careful during the step to avoid damage to the solenoid or wiring.

    • Gently separate the top and bottom of the marker.

  9. BaZQbvg6fr2OVtVL
    BaZQbvg6fr2OVtVL
    xY43oEV2D5MdMpvV

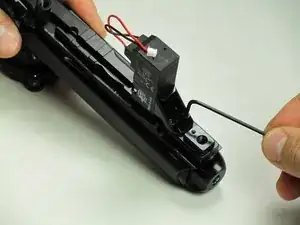

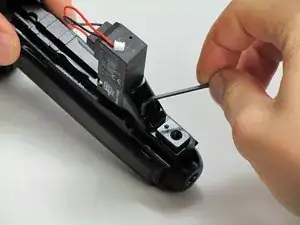

    • Remove the two black hex bolts that connect the solenoid mount to the body.

    • Use the 5/64" Allen Key to rotate each screw counter clockwise.

  10. twrMeL5YplRqDFPp
    twrMeL5YplRqDFPp
    Ps3HfYmxB4HMFHVW

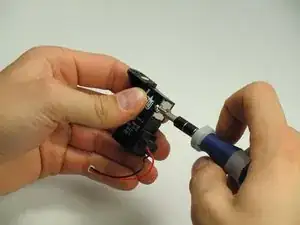

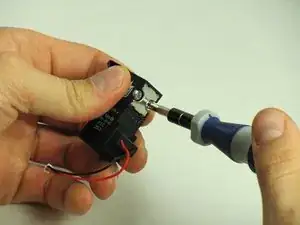

    • Remove the two Phillips head screws that connect the solenoid to its mount.

    • Use a Phillip's head screwdriver and rotate each screw counter clockwise.

    • Do not attempt to dismantle the solenoid. Intentionally dismantling or tampering with the solenoid voids the manufacturer’s warranty.

Abschluss

To reassemble your device, follow these instructions in reverse order.
