Planet Eclipse Geo3 Eyes Replacement

Geschrieben von: Rett Triplett
  • Kommentare: 0
Planet Eclipse Geo3 Eyes Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This guide will show how to replace the eyes and eye wire if either are damaged.

Werkzeuge

Ersatzteile

  1. wfAQNPwnMAkdd6Tk
    wfAQNPwnMAkdd6Tk
    elXTBsEX6mCRT6XM

    • Remove the four screws from the grip with the 5/64" allen wrench. There are two on each side.

  2. OuUPHAOa3E56xx5P
    OuUPHAOa3E56xx5P
    j2SXkRyZbTPtxHuI

    • Pull the grip away from the frame.

  3. Xuye1CPpwkc6TtfM
    Xuye1CPpwkc6TtfM
    pnw2YNIHNGfGbVRV

    • Pull the grip through the opening.

    • The grip is connected in the middle and is one piece.

  4. wOUIYhXEXwfBMaiO
    wOUIYhXEXwfBMaiO
    ElQmEPGrMisqZmF2
    iAWoyGRGwIhHBdIg

    • Remove the macroline from the fitting by pulling the metal ring around the end of the fitting away while pulling out the macroline.

    • It helps to rotate the collar to create room to pull out macroline.

  5. XiQiAFJNSkXLfyBv
    XiQiAFJNSkXLfyBv
    xSXKp4VYJwFWOgt2
    JCHylZlgIoAijQ5M

    • While pulling in the metal ring on the fitting, pull the macroline out.

  6. X2iDiqZVdt4hOXmj
    X2iDiqZVdt4hOXmj
    1htALKtqJLxYKCEM
    XtylUxTflTAYFCLt

    • Use 1/8" allen wrench to remove screw behind regulator.

  7. BbTaAkIfxxASRvkB
    BbTaAkIfxxASRvkB
    tpbPYA1jkwkJZTFn
    xbXmsp41afk6tfWs

    • Use 1/8" allen wrench to loosen the screw inside the grip on the right side.

    • The screw only needs to be turned a couple of times.

    • Slide the upper frame forward on the rails and remove the screw from the slot to separate the two halves of the body.

    • BE CAREFUL: Do not pull the two frames apart too much or too quickly. This may cause the wires to be damaged.

  8. ufONuadeJ3Vk2wha
    ufONuadeJ3Vk2wha
    EK6kQe1ygBfPhT6e
    SfLoDUtMugoQRqet

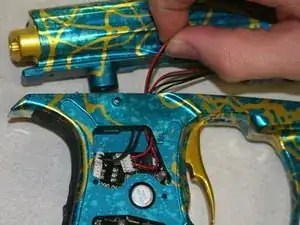

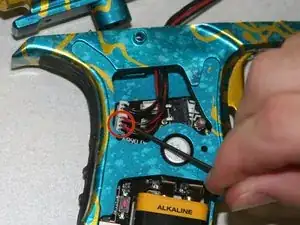

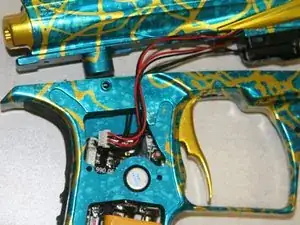

    • Use a prying tool or tweezers to gently remove the connection from the board. It is the connection with 2 black and 2 red wires.

    • Pull the wire through the opening.

  9. j3aJ2J2X4jhUeF1A
    j3aJ2J2X4jhUeF1A
    mltCsVh23IZvwYuT
    a42t2g2TvFCUXBeF

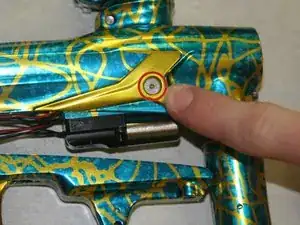

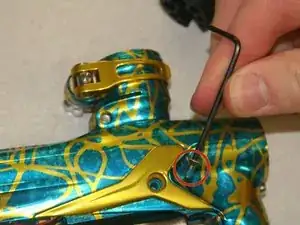

    • Use 5/64" allen key to remove each screw from eye covers (Located on both sides of the paintball marker.)

    • Pull off eye covers. (Located on both sides of the paintball marker.)

  10. CuYPqpRq2KeOKoDd
    CuYPqpRq2KeOKoDd
    akDs2jqEDCfBiMgF
    PSITp1PMqvdHEOeW

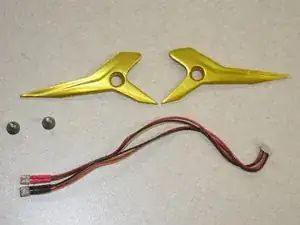

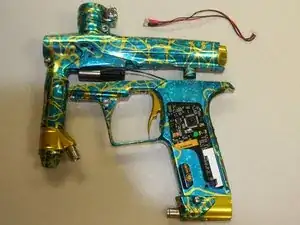

    • Gently pull out the two eyes, one on each side of the paintball marker.

    • The red wire leading to the eye on the right side of the paintball marker. The black wire leads to the eye on the left side.

Abschluss

To reassemble your device with a new eye wire, follow this guide in reverse.
