PlayStation 2 Slimline CMOS Battery Replacement

Geschrieben von: tlroesner
  • Kommentare: 3
PlayStation 2 Slimline CMOS Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. GOvnljT5etJXWjJo
    GOvnljT5etJXWjJo
    ocQJQENUDEIkE3Qg
    bGuHunnWUqSiXtyf

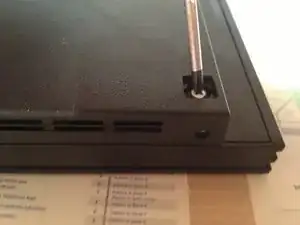

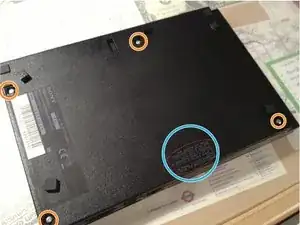

    • Remove all five screws on the downside of the PS2 Slimline

    • Remove the "Do not void" seal carefully, underneath is the fifth screw located.

  2. BGNYSCUcfckqaRXo
    BGNYSCUcfckqaRXo
    vC63QCGDjW3YOlUA

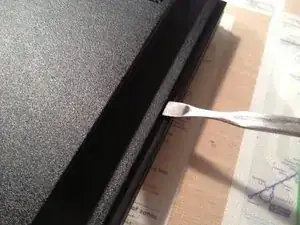

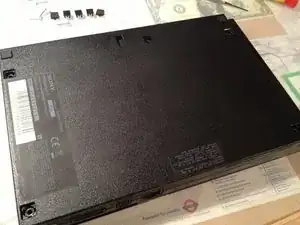

    • Take a metal spudger and open the chassis

  3. GFZlSdbVcN5dIgm6
    GFZlSdbVcN5dIgm6
    WUgL4l1l6iMJALlr
    ChRg3A3LqohuQFsy

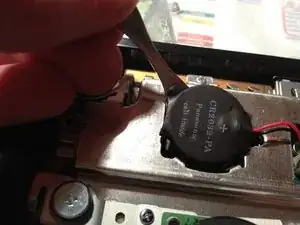

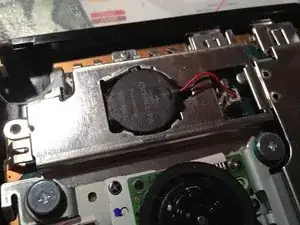

    • Locate the battery on the motherboard

    • Use a metal spudger to pull it up

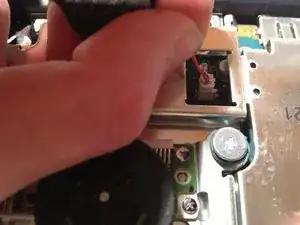

    • Pull the cable and the battery is removed, ready to replace

Abschluss

To reassemble your device, follow these instructions in reverse order.
