PlayStation 2 Slimline Motherboard Replacement

Geschrieben von: Thomas Sullivan

Kommentare: 4

PlayStation 2 Slimline Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 15 Minuten

Einleitung

Werkzeuge

Schritt 1

Disconnect all cables from the console and flip the unit over to reveal its base.

Schritt 2

Locate the 6 feet on the base of the unit. Pry them off using a spudger to reveal the screws.
Note: One of the feet is located under the sticker shown in the photo. Removing this sticker will void any warranty with Sony.

Schritt 3

Remove all six 4.0 mm screws from the base of the unit using a #1 Phillips screwdriver.

Schritt 4

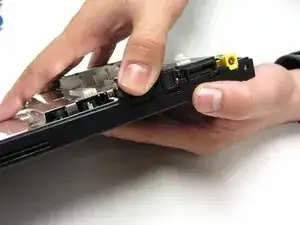

Starting at the corner at which the power and Ethernet ports are located, pry open the outer shell using a spudger and continue around the entire unit.
Note: You may use your hands for additional force to separate the two pieces of the outer shell.

Schritt 5

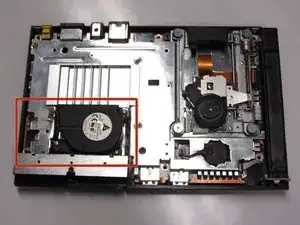

Locate the fan at the front, left section of the unit.

Schritt 6

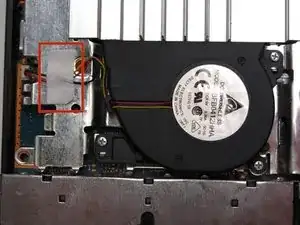

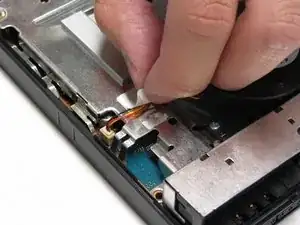

Peel off the sticker holding the power cords to the unit.

Schritt 7

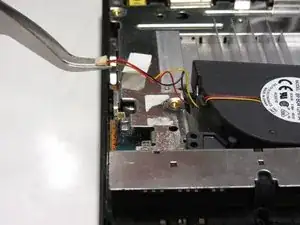

Lift the connector from the motherboard with a pair of tweezers using a firm, upward force.

Schritt 8

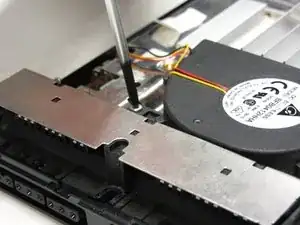

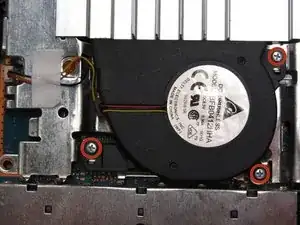

Remove all three 1.6 mm screws fastening the fan to the unit using a #1 Phillips screwdriver.

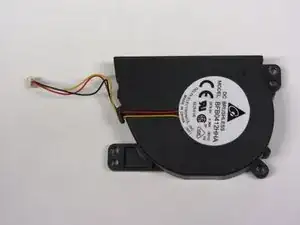

Gently lift and remove the fan from its compartment.

Schritt 9

Locate the clock battery at the front, right section of the unit. The battery has a circular shape with red (+) and black (-) wires connecting to the motherboard.

Schritt 10

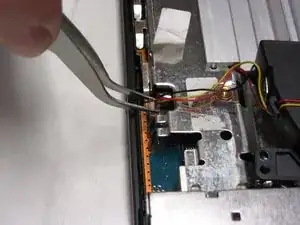

Lift the connector from the motherboard with a pair of tweezers using a firm, upward force.

Schritt 11

Gently lift and remove the battery from its compartment using a spudger.

Schritt 12

Locate the IR sensor at the front, right corner of the unit.

Schritt 13

Gently detach the ribbon cable connecting the IR sensor to the motherboard.
Caution: Always remove ribbon cables by the plastic handles located on either end. Gripping a ribbon cable anywhere but the provided handles can damage the cable and render the component useless.

Schritt 14

Gently lift and remove the IR Sensor from its designated slot.

Schritt 15

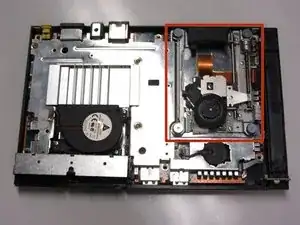

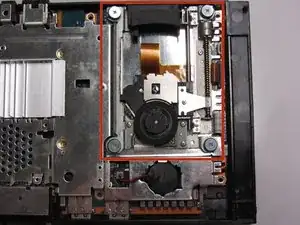

Locate the optical drive which occupies most of the space on the right side of the unit. It can be identified by the four screws with wide-diameter heads fastening the optical drive to the motherboard.

Schritt 16

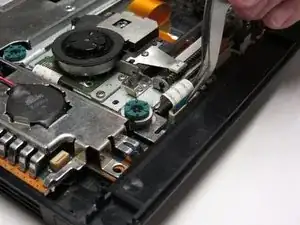

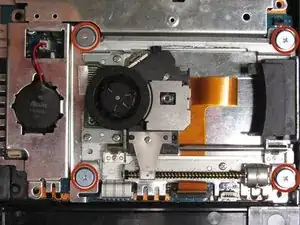

Remove the four 4.0 mm screws using a #1 Phillips screwdriver.

Schritt 17

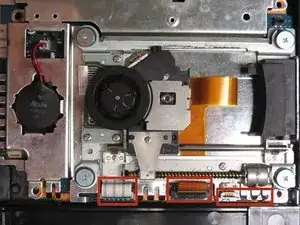

Locate the three ribbon cables connecting the optical drive to the motherboard.

Schritt 18

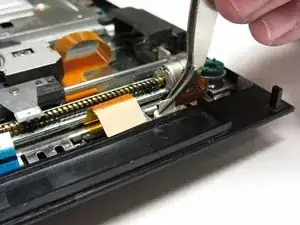

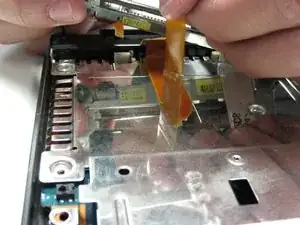

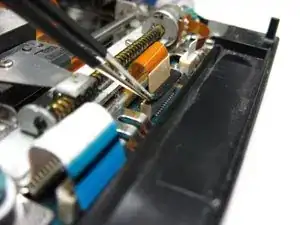

Gently detach the ribbon cables from the motherboard using a pair of tweezers.
Note: The ribbon cable in the center must be unlocked by lifting up the black tab. Remember to push the tab down upon re-installation to secure the cable.
Caution: Always remove ribbon cables by the plastic handles located on each end. Gripping a ribbon cable anywhere but the provided handles can damage the cable and render the component useless.

Schritt 19

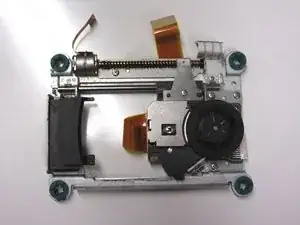

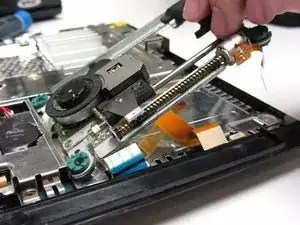

Remove any tape fastening the cables to the motherboard and gently lift and remove the optical drive.

Be really careful when dealing with the orange ribbon cable attached to the optical lens, as it is glued on the metal surface underneath it. From normal usage months or years, and the optical lens natural movement, this ribbon might lose some glue and start lifting upwards, sometimes even touching the CD surface. This could start scratching your games to an unplayable extent. Reapply glue if needed.

Americo Santos Oliveira -

You don't necessarily need to remove the ribbon cable from the shield. After you detached the cable from the motherboard, flip the optical drive and detach the other end of the cable.

Vincenzo Quinci -

Schritt 20

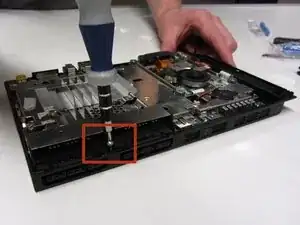

Remove the 2.4 mm screw located in between the controller ports using a #1 Phillips screwdriver.

Schritt 21

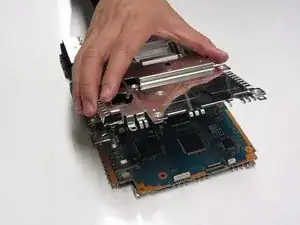

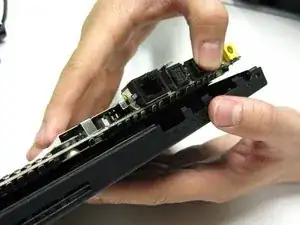

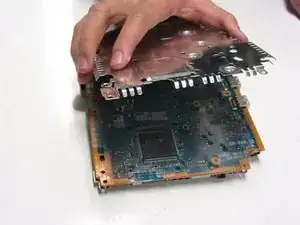

Gently lift and remove the motherboard and chassis from the outer shell.

Schritt 22

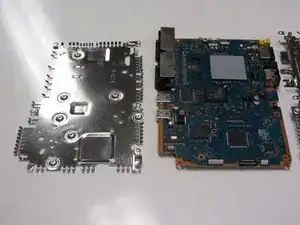

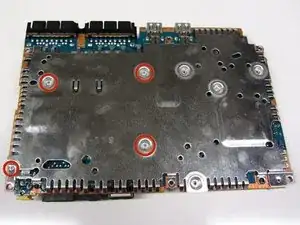

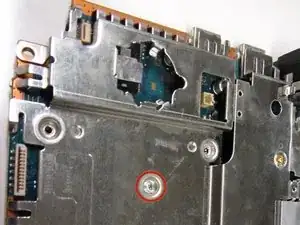

There are a total of five 1.6 mm screws which mount the metal chassis to the motherboard.

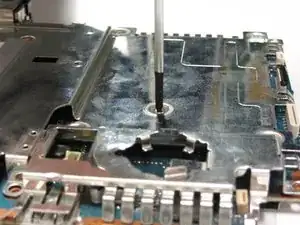

Remove the screw on top and the four screws on the bottom with a #1 Phillips screwdriver.
