PlayStation 2 Slimline SCPH-7500x Metal Chassis Replacement

Geschrieben von: Jared Hirata
  • Kommentare: 2
PlayStation 2 Slimline SCPH-7500x Metal Chassis Replacement

Schwierigkeitsgrad

Easy

Schritte

22

Zeitaufwand

5 Minuten

Einleitung

This guide will walk you through step-by-step on how to properly remove and install the metal chassis in the PlayStation 2 Slimline.

    • Turn off the PlayStation 2 and carefully unplug it from the power source. Also, it is important to eject the CD from the console before flipping the it upside down.

  2. rrxNCIoAMHJAQYbe

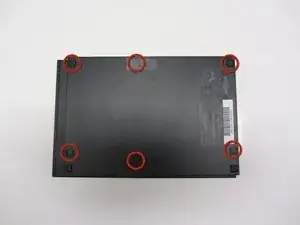

    • Locate the six feet on the bottom of the PS2.

    • Five of these feet are in plain sight while the last foot is located under the black void sticker on the back of the device.

    • Some versions of the console, such as the PAL Version, may not have this sticker. In this case, the foot or the screw should be in plain sight.

  3. XQThRiIVRdtfUQao
    XQThRiIVRdtfUQao
    CePSemaKYMndK2lE
    xRGCV3jyVnRXsExG

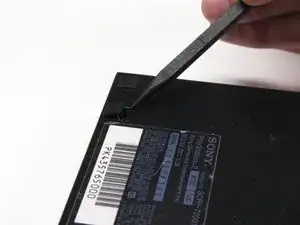

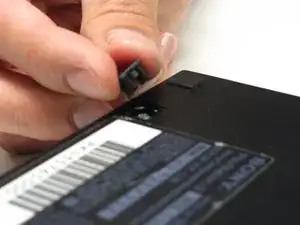

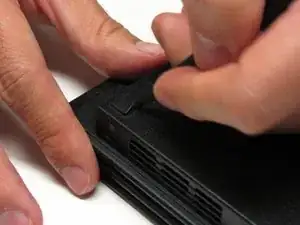

    • Remove the five visible feet from the bottom of the device using a spudger.

  4. TyDcmOhovTXCtDUV
    TyDcmOhovTXCtDUV
    3FwDx6oGEXcqdp5D

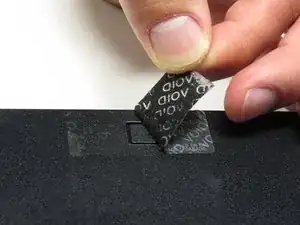

    • Remove the sticker and then remove the 6th foot.

  5. VSZUQRQLZhPX3K3r
    VSZUQRQLZhPX3K3r
    IqZSVQMBAt61xeun
    FS61tBC1AeuAIULo

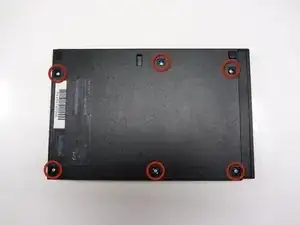

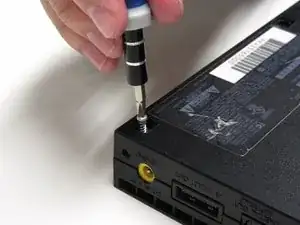

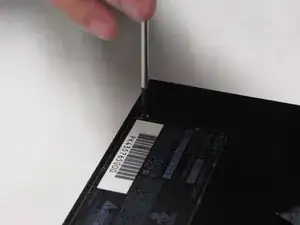

    • After all of the feet have been removed, Use a Phillips #1 screwdriver to remove the six 4.0mm screws from the base of the PS2.

  6. yKUm3LR1HlJljbpB
    yKUm3LR1HlJljbpB
    ANm1oOasZFjwWdIy
    aTKEotTNmoZOBNdi

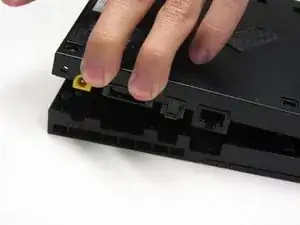

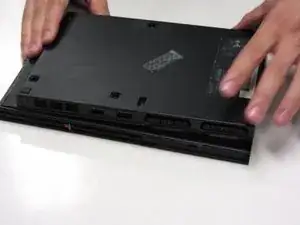

    • Once all of the screws have been removed, pry apart the plastic covers. Start by lifting the side containing the power cable and Ethernet port. Then, lift the opposite side to fully separate the two sides.

    • You may need to apply some gentle force to detach the covers. Be careful not to break the plastic screw pins.

    It took force to open it, but i broke a plastic pin where the screws enter

    Vasco Mateus -

    You can use a pick to get the thin edge up without breaking anything.

    Mira Mogzec -

  7. TlVTEuM4vBKmcycD

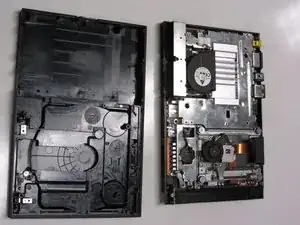

    • If done correctly, you should have a fully detached plastic backing, revealing the electronic components of the PlayStation 2.

  8. OTGWunfrXxw6M1LD
    OTGWunfrXxw6M1LD
    gfC2BDgYlvElRhIc
    aycYdQ2LV1VNwqoM

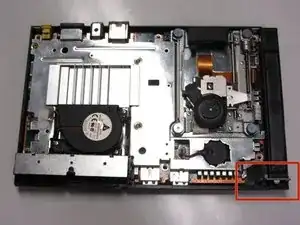

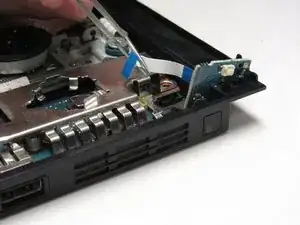

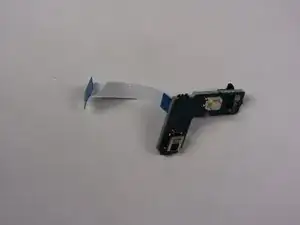

    • Locate the IR sensor on the motherboard. Then, use tweezers to gently detach the blue/white ribbon that attaches the IR sensor to the motherboard.

  9. 2HBEdc4e5QaoAXrh
    2HBEdc4e5QaoAXrh
    1thDCpjwuvjQDida
    ISqewWZOeq6CVur6

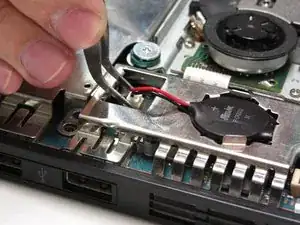

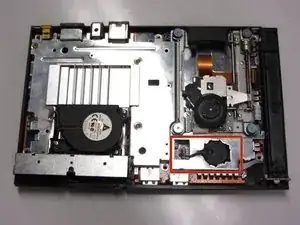

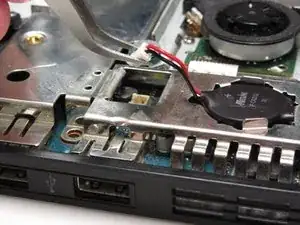

    • Identify the clock battery, then use tweezers to disconnect the connector from the motherboard.

  10. ReyWaQYYYJPVUEQC
    ReyWaQYYYJPVUEQC
    EEhaAK6OGeCPFvPi

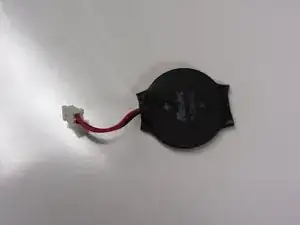

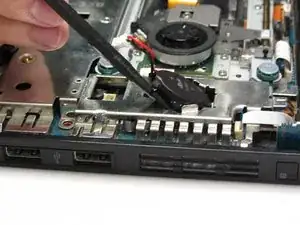

    • Gently lift the battery up from the battery compartment using a spudger.

  11. TIFRvbmB31Ks4wdW
    TIFRvbmB31Ks4wdW
    NQXhAmCBTYUqL3OK
    DRbFygvEEsgbyU1n

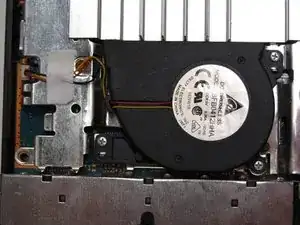

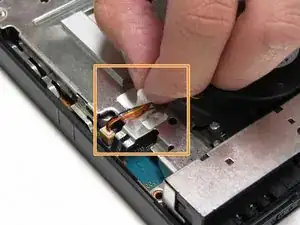

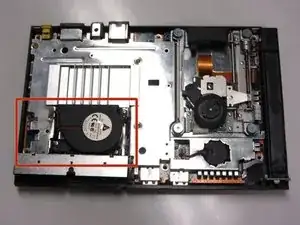

    • Locate the fan component of the motherboard of the PS2.

    • With your fingers or tweezers, peel off the sticker that holds down the fan's wiring.

  12. bIvETfeMhkKoJmGR
    bIvETfeMhkKoJmGR
    G1vkOYYMJnWInCO6

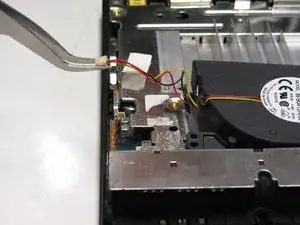

    • Detach the terminal (white covering) to the red and yellow cords from the motherboard to the fan with the use of tweezers.

  13. ZhpKqYVgbVuJ6EHY
    ZhpKqYVgbVuJ6EHY
    n1FvjZ5jQX6FDIaS

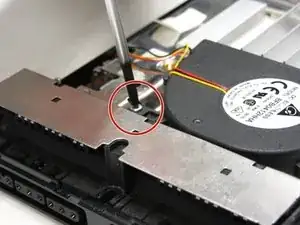

    • Locate and unscrew the three 1.6mm screws located next to the base of the fan.

    • They are located off the curved edge of the fan.

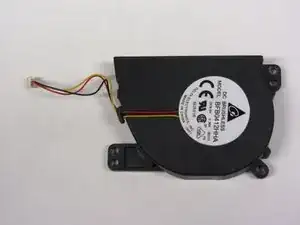

    • Once you have removed the three screws, you are able to remove the fan from the PS2.

  14. bJDswokALugTiESO
    bJDswokALugTiESO
    PpqMnSwdS5hgVGIT

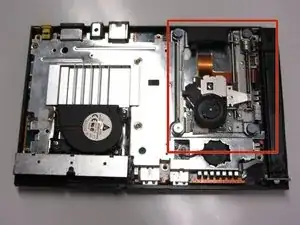

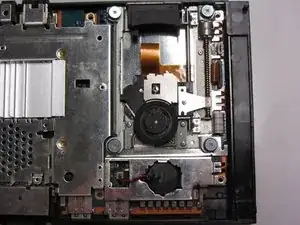

    • Locate the optical drive on the motherboard.

  15. rXRCXGfhofpIKLpA
    rXRCXGfhofpIKLpA
    xZpKpQjIMHwm6ZoI
    ZkliX1EUGTIJrEI2

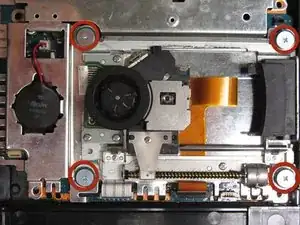

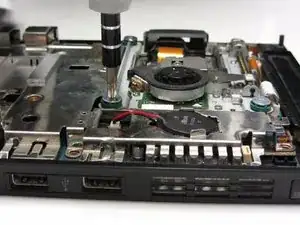

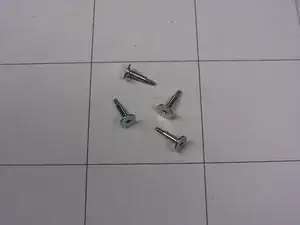

    • Unscrew the four 4.0mm screws that mount the optical drive to the motherboard.

  16. HAsbLXH2A3idQIp1

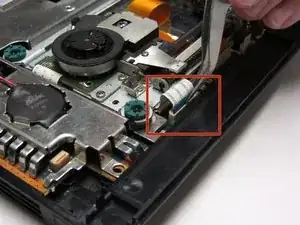

    • Locate the three ribbons that are attached to the motherboard.

    • Note: These ribbons are different sizes: one large, one medium and one small sized ribbon.

  17. EXIHQyLWFVR1NcX4
    EXIHQyLWFVR1NcX4
    l5TACcoOID5nQAof
    thSOPZEE1W2hp6NY

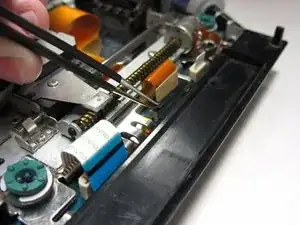

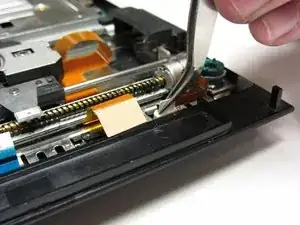

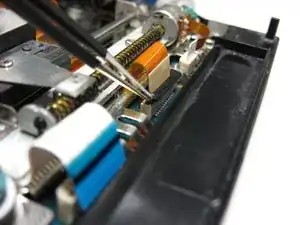

    • Using tweezers, gently detach all three ribbons from the motherboard terminal. Unlock the middle orange ribbon to lift the black tab up on either side.

    • IMPORTANT: The orange ribbon is glued to the metal chassis. Gently pull the ribbon upward to make sure that you don't rip it.

  18. EPrdUueOYl3aiStF
    EPrdUueOYl3aiStF
    ZhUNbAlMVcw2jL1G
    QxUIBCLGUpDHHCle

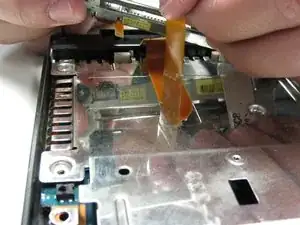

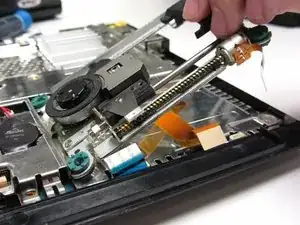

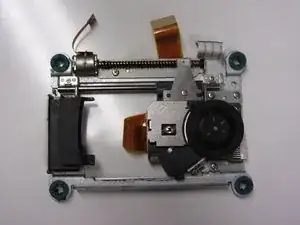

    • Gently lift the optical drive away from the motherboard.

  19. 4JtgfEdeUFlPsbWG

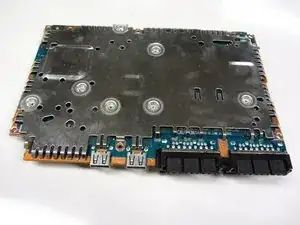

    • Locate the metal plate that is attached to the back of the motherboard.

  20. yLKjYnEx4MC3wNJ3
    yLKjYnEx4MC3wNJ3
    JEttA36A3ZgZibHw
    BKHOoGaNZ3JlFJXy

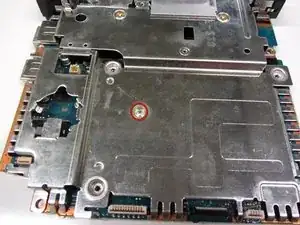

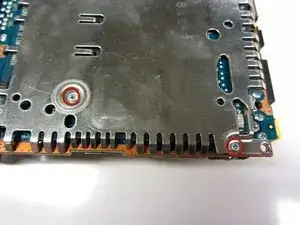

    • Locate the six 1.6mm screws that mount the metal plate to the motherboard.

  21. fDRRuneC3vPJsTdD
    fDRRuneC3vPJsTdD
    FCVJMIFNWDcU4wMc
    4uOH2p5r4suKOUat

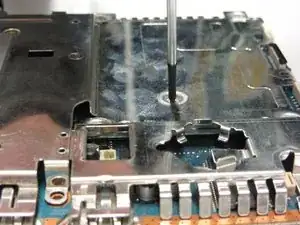

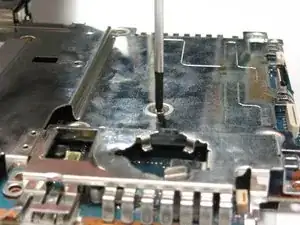

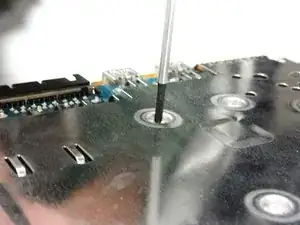

    • Unscrew all six 1.6mm screws that mount the metal plate to the motherboard.

  22. TF1EqLrYWbFuaIoM
    TF1EqLrYWbFuaIoM
    rXh11AsoEiwqwHqA
    iiuRWmbW1oKJgCYw

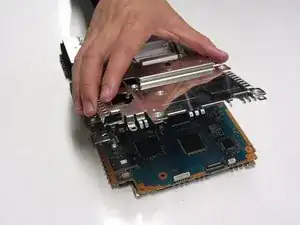

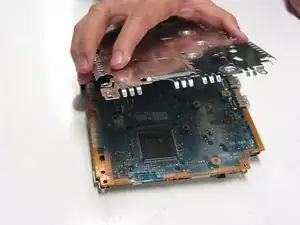

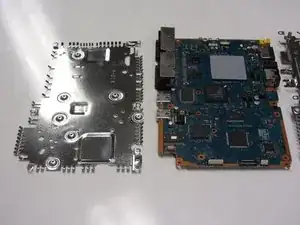

    • Gently lift the metal plates from both the top and bottom of the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
