PlayStation 3 Blu-Ray Laufwerk tauschen

Geschrieben von: Brett Hartt
  • Kommentare: 45
PlayStation 3 Blu-Ray Laufwerk tauschen

Schwierigkeitsgrad

Mittel

Schritte

16

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

Diese Anleitung zeigt dir, wie du ein kaputtes oder defektes Blu-ray-Laufwerk austauschen kannst. Hier wird nur der Austausch des originalen KEM-400 Blu-ray Laufwerks gezeigt.

  1. XC4PojAakGaJAFNl
    XC4PojAakGaJAFNl
    w6MZgkkapHlYZyjY

    • Entferne mit der Spitze eines Spudgers den schwarzen Gummi-Schraubdeckel von der Seite der PS3.

    • Die Schrauben-Abdeckung kann unter einem Garantie-Aufkleber sein. Dieser Aufkleber wird nach dem Entfernen sein Aussehen ändern und "VOID" (Ungültig) anzeigen.

    Fake repair. Real fault: How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

  2. oshv21lAV45JYI3H

    • Entferne die 8,5 mm TR10 Torx Security Schraube von der Abdeckung.

    How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

    I need a tork screw bracket / holder A/E/B/E01- MG and security torx screw for a CECH-AO1 do u guys sell these?

    vuhx -

  3. vT35crSssXRtUiCa
    vT35crSssXRtUiCa
    Hq6BfirJtZsLRxlL
    1HexXRWUkCZGc3fT

    • Ziehe die Abdeckung in Richtung des Festplattenschachts, dann hebe sie vom Körper der PS3 ab.

    How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

  4. bGm1uV3D5RH6tHdi

    • Achte auf den kleinen Metallbügel, der lose in der oberen Abdeckung gehalten wird.

    That small metal bracket/socket set up looks completely different in the ps3 I'm working on. Model: CECHK01.

    Any suggestions?

    Marcus -

    different in mine too, Model: CECHP01

    Link Adrian -

    mine does not have one at all

    ian.downard01 -

    1How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

    Did not find in my CECHH01

    Philippe Morin -

  5. XRh3WC3LKEbh42KV

    • Entferne die folgenden sieben Schrauben:

    • Sechs 52 mm Kreuzschlitzschrauben

    • Eine 30 mm Kreuzschlitzschraube

    2 more smaller screws (don't know what size...small) just below the top middle screw and top right screw (in the picture). Look for the arrows...

    E Goo -

    can confirm, might be the backwards compatibles only

    Jordan Giese -

    after you remove the screws, you may have to push a tab to take the cover off if you meet resistance on one side of the cover. Here is a link to a video that explains it, saved me lots of trouble:

    http://youtu.be/jZgekNsRB-A?t=1m54s

    ericksi33 -

    Thanks @ericksi33, this really helped me out.

    hogurt -

    1st attempt, fan loud. Ps3 lasted about 2 wks. 2nd attempt noticed very poor contact between heatsink & cpu,gpu when taking it apart. Research - Found a better way to apply thermal past. I personally disapprove of guide on this. A small bit about the size of a grain of rice in center of cpu is plenty. Clamp the heat sinks back on. Then take it apart & check contact area. Thermal paste should have spread to about the size of a quarter.(more is better. Less then a nickel size is poor contact) possibly weak clamps. Carefully applied pressure onto the cpu & gpu, pressing them into the heatsinks before clamping heatsink clamps on. Achieved greater then quarter sized thermal past spread. Fan silent in comparison & ps3 lasted about a yr. Rarely did I ever hear the fan go to high and get loud after that. About to begin my third fix on this same ps3. One of the first 80g backwards compatible. other then those notes and that this guide was for a different model ps3 (minor differences) I liked this guide. easy to follow.

    brettgomes -

    Although the battery is described as proprietary, it looks like it is the common CR2032 lithium coin battery that is used in calculators and some computers. I haven't had to replace mine but I suspect under the heatshrink cover is a battery holder which will allow the coin battery to be removed and replaced. Then wrap with electrical tape and reinstall.

    RickP -

    I tried this with the heatgun and it ruined my PS3. The CPU and GPU are NOW RUINED!!! It did not work for and made things worst!!! I sent it to a place to get reballed and they said the HEATGUN had overheated my processor and killed them!!! So think twice about doing this. Just because it is already broken, DON'T THINK YOU CAN'T MAKE IT WORST!

    georgehollyoh -

    Why would you try it with a heat gun, no were is it mentioned to do that

    Phillip Pereira -

    There are 2 additional screws to remove , front center and front left , just behind the already marked screws.

    mikentc90 -

    As mentioned and I’ll add so detail too. If you have a model with the card readers there are two more small screws that also need to be removed before moving on to the next step.

    screech -

    2How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

    I felt more comfortable with #2 screwdrivers.

    Philippe Morin -

  6. ILqbDWeJe5dF1lSK

    • Hebe die obere Abdeckung von der Hinterkante und drehe sie in Richtung der Vorderseite der PS3.

    • Entferne die obere Abdeckung.

    • Hinten rechts in der Ecke befindet sich ein kleiner Plastikhaken. Löse diesen vorsichtig, indem du mit einem Spudger durch die Öffnung dagegen drückst.

    Disconnect the memory card ribbon cable.

    Tobias Stockmann -

    The top would hardly budge on the left back corner and was stuck on the right back corner. There is a plastic hook that needs to be unfastened to lift the top off. It is located in a hole on the top back corner on the right hand side, so the corner straight across the on off button. Just gently push the plastic hook a bit front the rear of the machine with a spudger. It gives easily and the top will be free to lift off after that.

    cornellg -

    I can confirm on CECHH01.

    Philippe Morin -

    Some more details here as well.

    The newer model without SACD support appears to have added that clip to the back right that needs to be pressed to release the top shell.

    If equipped with the card reader you can either have to disconnect the ribbon cable or unclip the reader from the top shell after lifting it up to get finger or tool in there to push clip to side and release reader from top shell. Note: if you failed to remove the card reader screws in the previous step these clips can break.

    screech -

    The original 60GB with the CF card reader on the front has a button protruding out. This will make it difficult to remove the top. You need to unscrew the memory card reader so it can come out easily.

    Brian Caines -

    Wow, this needs more attention. This isn't explained in any disassembly guide I've seen. You also need to be cognizant of the card reader cable when you're lifting off the lid.

    SolidSonicTH -

  7. OdxmYRCnAtAtZTiC

    • Trenne die Blu-ray-Stromkabel von der Hauptplatine.

    • Ziehe den Stecker gerade nach oben und aus der Fassung.

    I would add… “Be careful taking these type of connectors apart” …. its easy to pull the entire thing off the motherboard and rip pads !

    The pulled pads can be replaced but its extra work you don’t need :-) and requires equipment and skill to do and cold require jumper wires.

    asears -

    Pull the cables gently, the plug will come out of the socket. The plug is encased by the socket.

    A K -

    That’s also what I did.

    Philippe Morin -

    My PS3 is the CECHL01 and I had to remove the PSU to get to the disk drive ribbon cable.

    Benjamin Burden -

    I mistakenly ripped the whole thing out... I do not know where to begin on repairing it.

    Tom Gillis -

  8. ieKbPALPyOT6aHOM

    • Hebe vorsichtig das Blu-ray-Laufwerk von der Kante, die zur Stromversorgung zeigt, an und drehe es weg vom Gehäuse, um den Zugang zu den Flachbandkabeln zu ermöglichen.

  9. JrydZ5XFLxnDoEkA
    JrydZ5XFLxnDoEkA
    NRlknsmmnErk36XY
    Gf6tmmxAdjQaJtwa

    • Klappe mit deinem Fingernagel die Halterungen der Flachbandkabel an der Buchse nach oben.

    • Achte darauf nur an der Halteklappe und nicht an der Fassung selbst zu hebeln.

    • Ziehe das Flachbandkabel aus der Fassung.

    • Entferne das Blu-ray-Laufwerk aus der PS3.

    • Wenn du das Blu-ray Laufwerk austauschst, verwende das Netzkabel vom neuen Laufwerk.

    Not all systems look like this, some have tape instead of the flap.

    gatewaynomad -

    Every system that I have seen has had the ZIF connector, while some had tape over the connection as well. If your connectors are taped, be sure to remove the tape, then proceed with undoing the ZIF connector.

    Brett Hartt -

    The version 2 systems baseboard PCB started switching to the new narrow 24 pin ZIF header/ribbon and Blu-Ray drive connection.

    You should not attempt to detach the taped ribbon cable from the drive end first as described above for the older wide 60 pin ribbons. You must remove the drive and ribbon as one unit to protect the fragile ZIF sockets.

    The slimmer fragile ribbon is taped to the drive housing to afford a more secure ZIF connection. The opposite base connection is slightly under the PSU.

    continued

    shadetree -

    From continued

    One should firstly remove the PSU: Disconnect the drive power cable as described above. Unscrew the 5 (3-P1 2-P2) PSU mounting screws. Now leaving the power cables attached, lift the PSU off the power baseboard PCB pins and move over slightly to access the baseboard drive cable end ZIF. Release the ZIF latch and slide the entire (drive and ribbon) strait away from the baseboard ZIF to disconnect.

    After the complete drive/ribbon removal, you can carefully remove the restraining tape on the bottom of the drive to release the ribbon ZIF, then remove the 24 pin ribbon from the drive logic PCB.

    Install in reverse order making sure to add new tape to secure the ribbon to the drive.

    shadetree -

    I needed to remove the PSO completely to reach the baseboard drive cable end ZIF. To do that disconnect the power and data (I assume) cables and then pull the unit straight up. To longish prongs are heading straight up into it from the baseboard and it is a bit tight, so gently pull until it's clear.

    cornellg -

    If you are replacing the Blu-ray drive, you must use the same daughterboard that came with your PlayStation 3. The daughterboard is paired to the motherboard, and the Blu-ray drive will not work with a different board. -------------- I understand however my daughterboard is not on the bottom of the blu-ray drive it must be on the inside. Is there any advice out there on how I go about doing this as I am not sure what I am doing???? If someone could post a link or any tips it would be greatly appreciated.

    jimmy -

    When I received my new drive there was a sheet that said you could keep the old boards but you have to 'flash' them with the ps3's digital information. Currently trying to figure out how.....

    Cheffy -

    My CECHH01 has its blu-ray drive encased in a shield plate. Only one ribbon cable is visible. (The one we have to disconnect). Mine had some tape over it.

    Also, I used a spudger instead of my nails.

    Philippe Morin -

  10. AXRhq1bIVL3G3mP4
    AXRhq1bIVL3G3mP4
    wGXFrOW4GPjTnykd

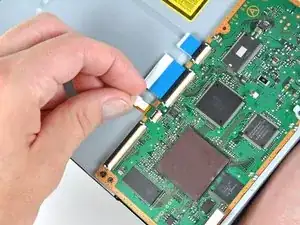

    • Hebe den Sicherungsbügel am ZIF Verbinder, mit dem das Kabel des Motors der Blu-ray Linse an der Blu-ray Tochterplatine befestigt ist, mit dem Fingernagel hoch.

    • Ziehe das Flachbandkabel gerade aus seinem Anschluss auf der Tochterplatine heraus.

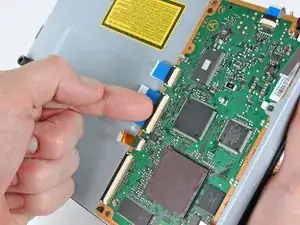

  11. 6I5IHwCwZxwZZHGZ
    6I5IHwCwZxwZZHGZ
    dLfgRIbDwGYqsrRa

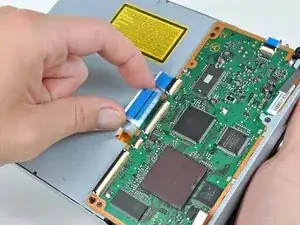

    • Hebe den Sicherungsbügel am ZIF Verbinder am Datenkabel der Blu-ray LInse an der Blu-ray Tochterplatine mit dem Fingernagel hoch.

    • Ziehe das Flachbandkabel gerade aus seinem Anschluss auf der Tochterplatine heraus.

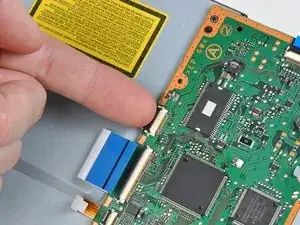

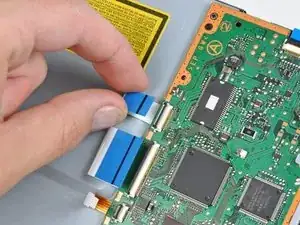

  12. Liljcx2KAGLHoMUq
    Liljcx2KAGLHoMUq
    JMKX24SJZkeKDobv

    • Hebe den Sicherungsbügel am ZIF Verbinder am Kabel des Blu-ray Motors an der Blu-ray Tochterplatine mit dem Fingernagel hoch.

    • Ziehe das Flachbandkabel gerade aus seinem Anschluss auf der Tochterplatine heraus.

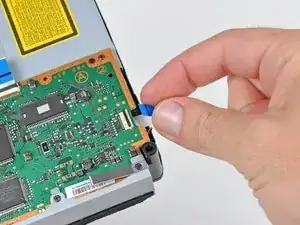

  13. LG1SqxkiR4aXNUxi
    LG1SqxkiR4aXNUxi
    AGGAgMnpFSN5Gspn

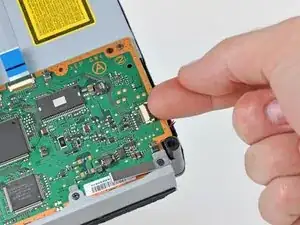

    • Hebe den Sicherungsbügel am ZIF Verbinder am Kabel des Blu-ray Infrarot-Sensors an der Blu-ray Tochterplatine mit dem Fingernagel hoch.

    • Ziehe das Flachbandkabel gerade aus seinem Anschluss auf der Tochterplatine heraus.

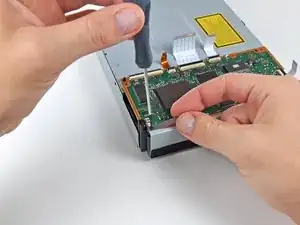

  14. jldCQLQEBAhm1LDl
    jldCQLQEBAhm1LDl
    XeHEraHDfpmOY4g1

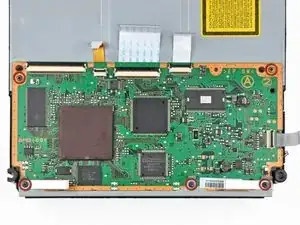

    • Entferne die fünf 8,4 mm Kreuzschlitzschrauben, mit denen die Blu-ray Steuerplatine am Blu-ray Laufwerk befestigt ist.

    • Achte darauf, dass du die metallenen Erdungsfedern unter den Schrauben in den Ecken auch entfernst.

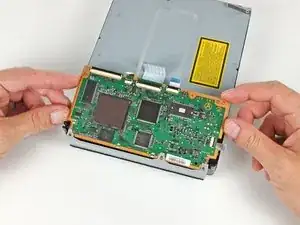

  15. sXXhqsX5jkiLg5Lj
    sXXhqsX5jkiLg5Lj
    qYaulkXhBBImmROO

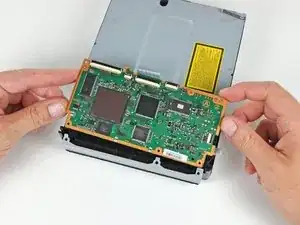

    • Hebe die Tochterplatine vorsichtig an der hinteren Kante hoch.

    • Schiebe die Tochterplatine unter dem Gehäuseoberteil heraus.

    • Versuche noch nicht, die Tochterplatine ganz zu entfernen. Sie ist noch mit einem Kabel auf der Platinenunterseite angeschlossen.

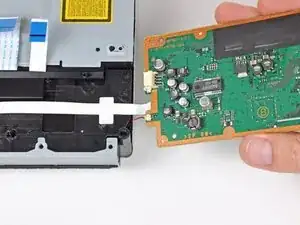

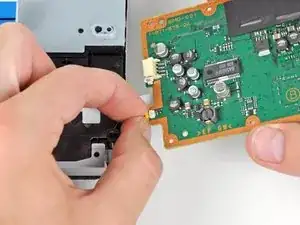

  16. jFFIqSPAlMyHOGZS
    jFFIqSPAlMyHOGZS
    D3mNA3uCxLTD4qB1

    • Drehe vorsichtig die Tochterplatine um, achte darauf, dass das Kabel nicht zu stark belastet wird.

    • Ziehe das Infrarotsensorkabel gerade aus seinem Anschluss auf der Platine heraus.

    • Achte darauf, dass du nicht an den Kabeln ziehst, wenn du den Stecker aus dem Anschluss herausziehst.

    • Das Blu-ray Laufwerk bleibt übrig.

    • Wenn du das Blu-ray Laufwerk austauschst, musst du die ursprünglich mit deiner PS3 ausgelieferte Tochterplatine verwenden. Die Tochterplatine ist mit der Hauptplatine gekoppelt und das Blu-ray Laufwerk wird mit einer anderen Tochterplatine nicht funktionieren.

Abschluss

Um dein Gerät wieder zusammenbauen, folge den Schritten in umgekehrter Reihenfolge.
